3-5 Gallon Water Filling Line

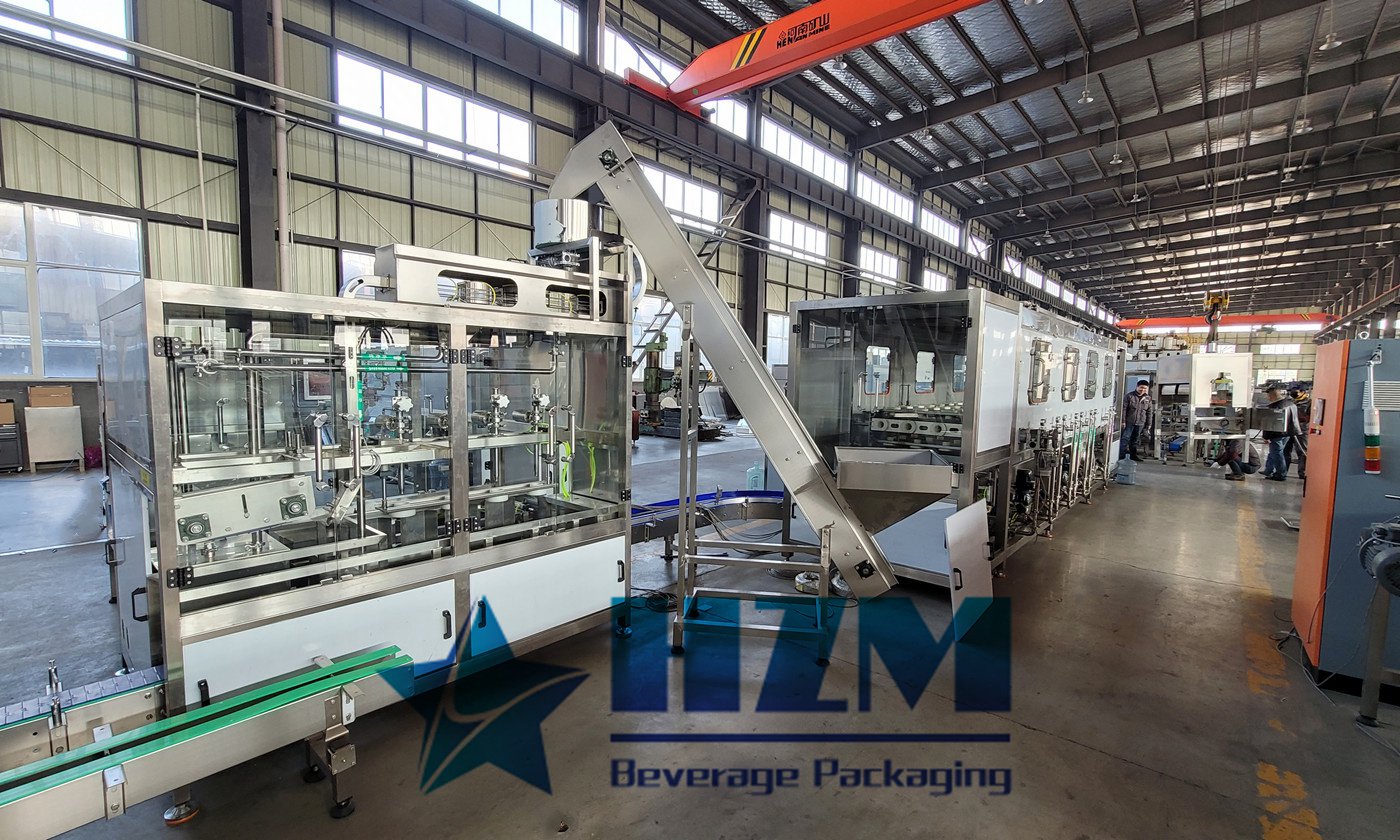

Gallon filling machine is mainly used in 3-5 Gallon drinking water production line, with optional capacity range from 300BPH to 2000BPH. Such production line including: De-capping machine, internal and external washing machine, cap loader, filling and capping machine, labeling and packing machine.,etc.

Brief Introduction

QGF barrel production line is composed of sterilizing, washing, filling and capping for barrel. It’s especially used for the production of drinking water of 3 gallon and 5 gallon, with type QGF-120, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200. QGF-2000. It intergrates bottle washing, filling and capping into one unit. In order to achieve the purpose of washing and sterilizing, the washing machine use multi-washing liquid spray and-thimerosal spray. This thimerosal can be used circularly. The capping machine can cap barrel automatically. This line equips with water spraying device in order to ensure those caps sterilizer and clean. It also can automatically carry out barrel , washing, sterilizing, filling, capping with complete function, modern design and high degree of automation. It is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together.


  • High accuracy
  • Long service life
  • High productive
  • Easy to operate
  • Long warranty
Product Introduction
Product Configurations
Product Parameters

Product Introduction

Cap Decapper

It is a fully automatic cap decapping machine developed by our company and suit for the 5 gallon bottle production line.

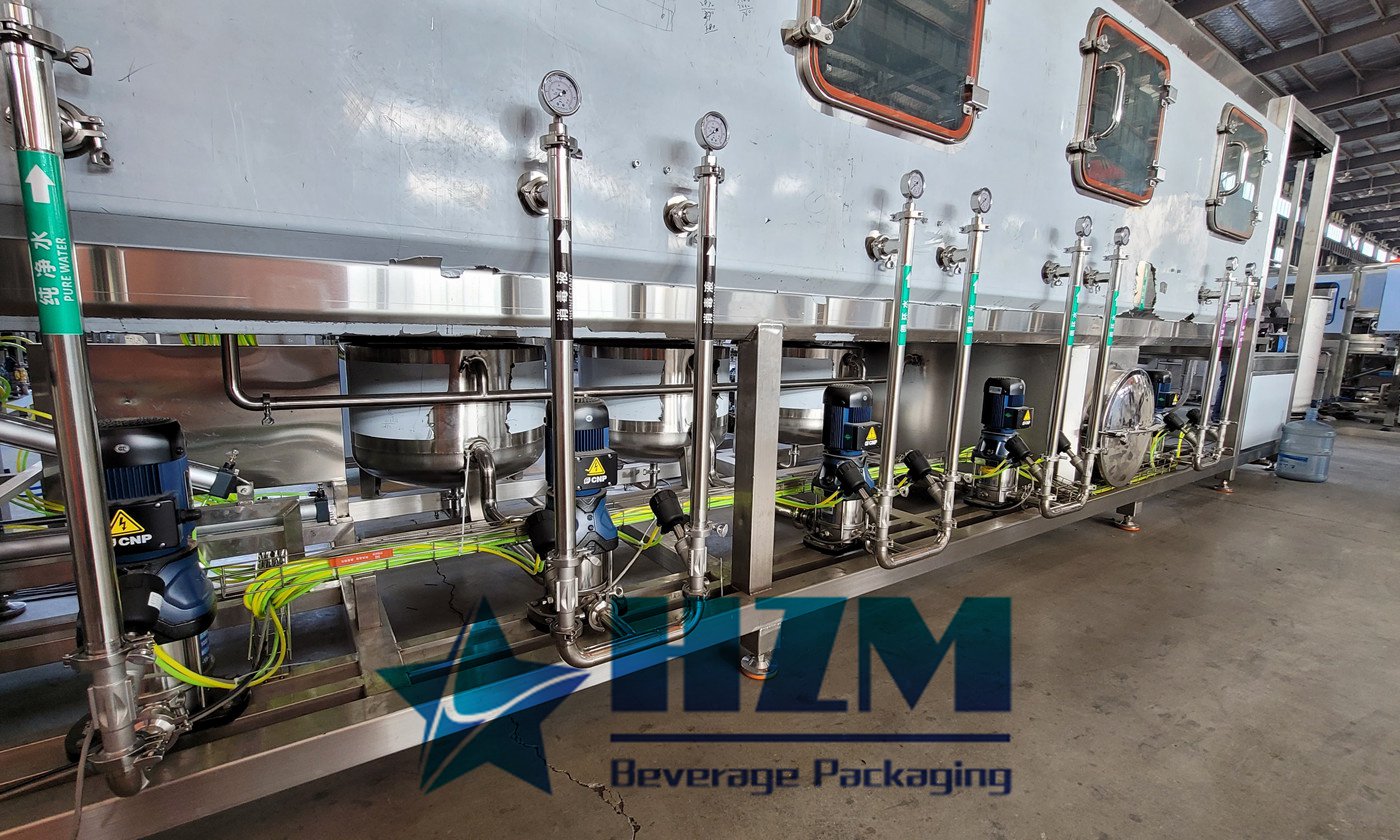

External Barrel Washer

The external barrel washing machine integrates automatic barrel measurement, barrel inlet, barrel washing, spraying, and barrel outlet. It has the characteristics of fast washing speed, high washing cleanliness, compact structure, simple operation and convenient maintenance.

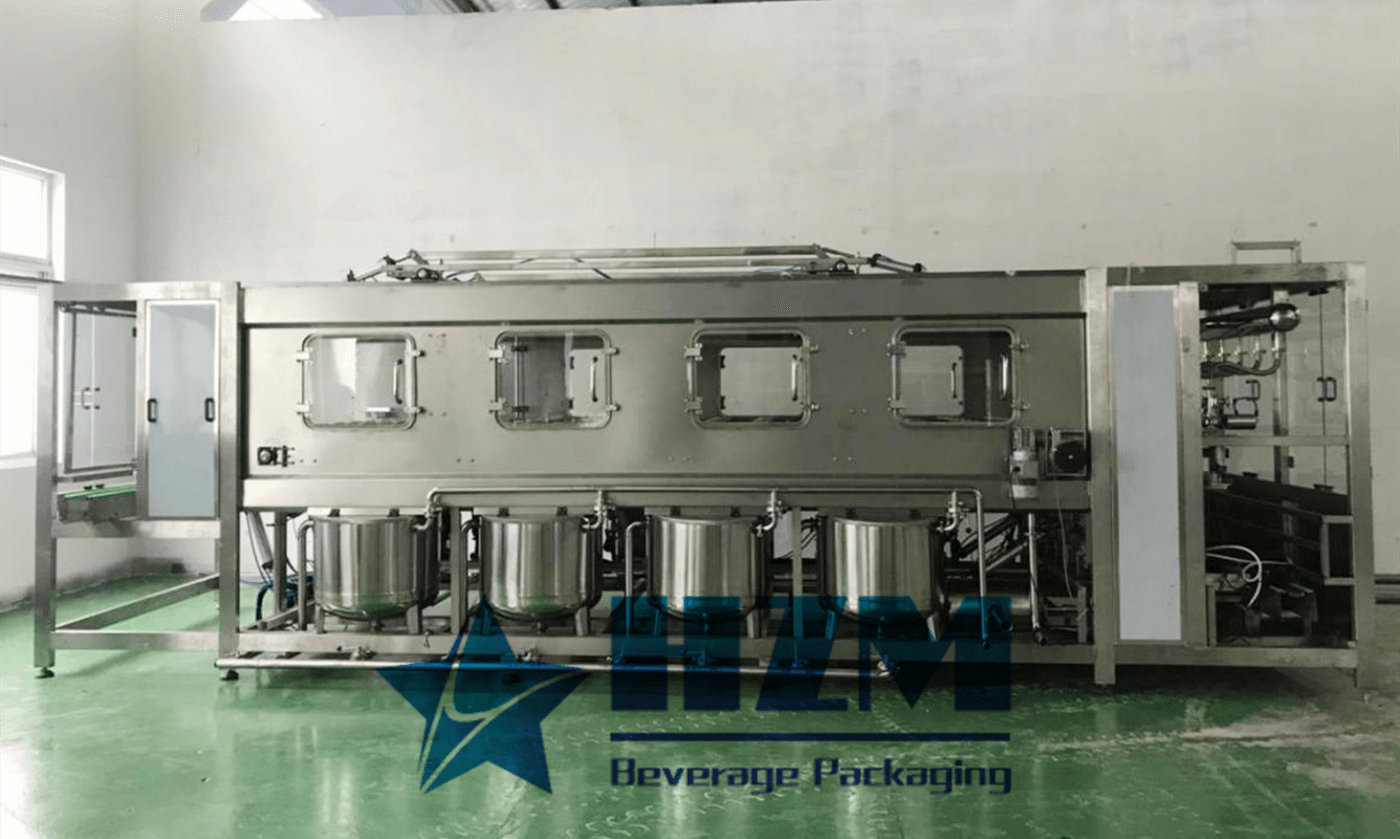

Internal Barrel Washing-Filling-Capping Machine

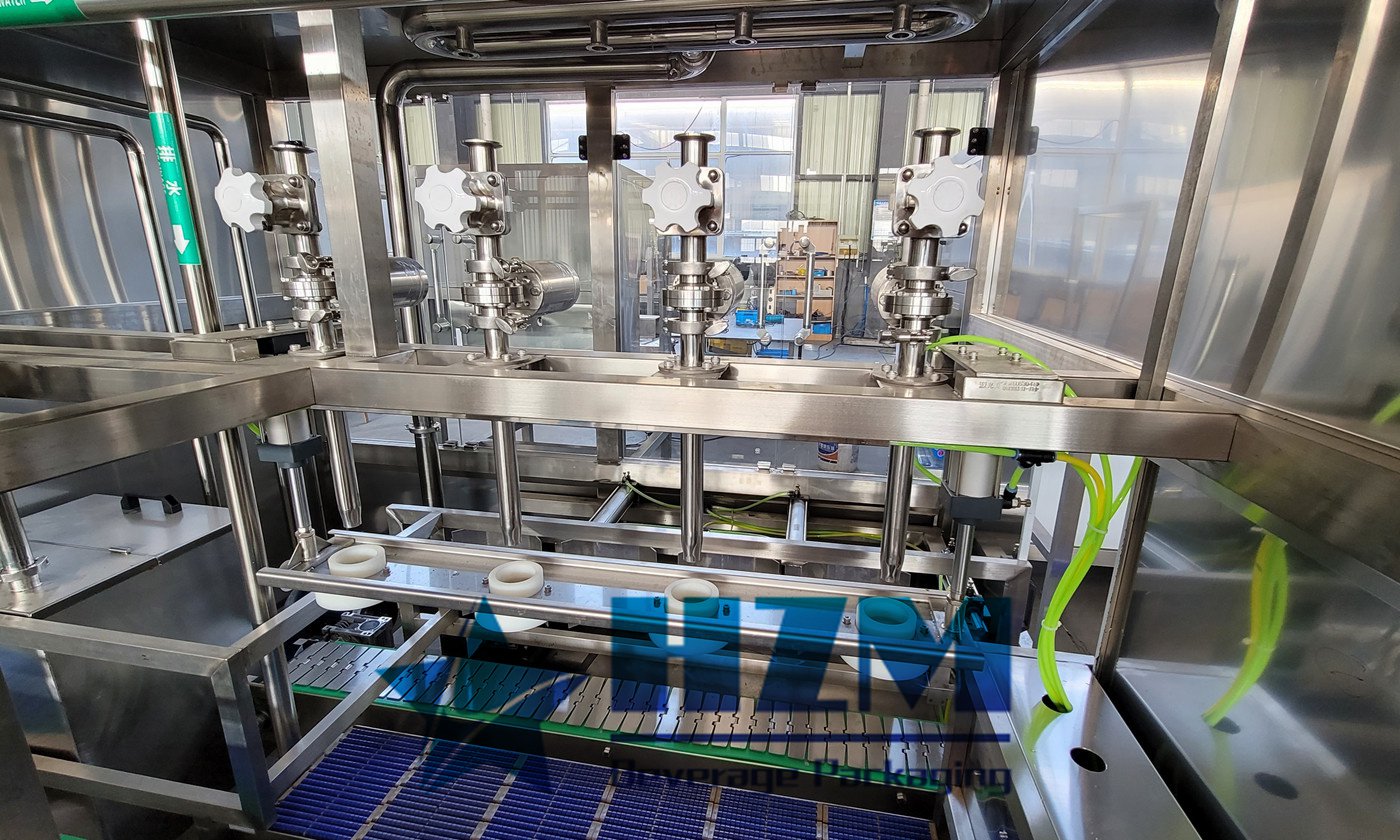

QGF barrel filling line is used to produce 3/5 gallon drinking water. This machine composed with washing, filling and capping. It is the ideal equipment for mineral water, distilled water and pure water producing process. The machine is made of great stainless steel which is corrosion resistant and easy cleaning. All the pneumatic parts are from the famous brand AIRTAC. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Product Configurations

Name Supplier
Inverter MITSUBISHI-Japan
Rinsing/Fillling Pump CNP-China
Touch Screen MITSUBISHI-Japan
Touch Screen SIEMENS-Germany
Contactor SCHNEIDER-France
Hot Relay SCHNEIDER-France
Air Switch SCHNEIDER-France
Pneumatic Components Airtac-Taiwan China

Product Parameters

Model Filling



(Based on 5 gallon)

Barrel Dimension






QGF-120 1 120 φ230*420, φ 276*490 3700*1300*2200 1.76
QGF-300 2 300 φ230*420, φ 276*490 4060*1860*2200 15.0
QGF-450 3 450 φ230*420, φ 276*490 5000*2000*2200 16.0
QGF-600 4 600 φ230*420, φ 276*490 5400*2200*2200 19.0
QGF-900 6 900 φ230*420, φ 276*490 7000*2200*2200 20.0
