CSD Filling Line

Carbonated beverage is the choice of most young people. It is not only a beverage but also a culture. It has become a trend among young people. Carbonated beverage production line is an important part of our products, its applicability is very wide, not only can produce carbonated beverages, but also can produce a variety of juice-flavored beverages and high-end natural gas mineral water.

Play Video
CSD Filling Line

The gas line is popular among young people. Compared with the waterline, it is relatively complex in technology. The beverage mixing system – refrigeration unit – carbon dioxide mixing system and CIP cleaning system of the production line need to be added.

The carbonated beverage production line can be divided into carbonated beverages such as Coca Cola, aerated soda water and natural aerated water according to different tastes and processes.

Type Of Bottle

PET

Size: 200ML~2000ML

Glass Bottles

Size: 200ML~1000ML

Cans

Size: 200ML~750ML

CSD Filling Line

Our Advantages

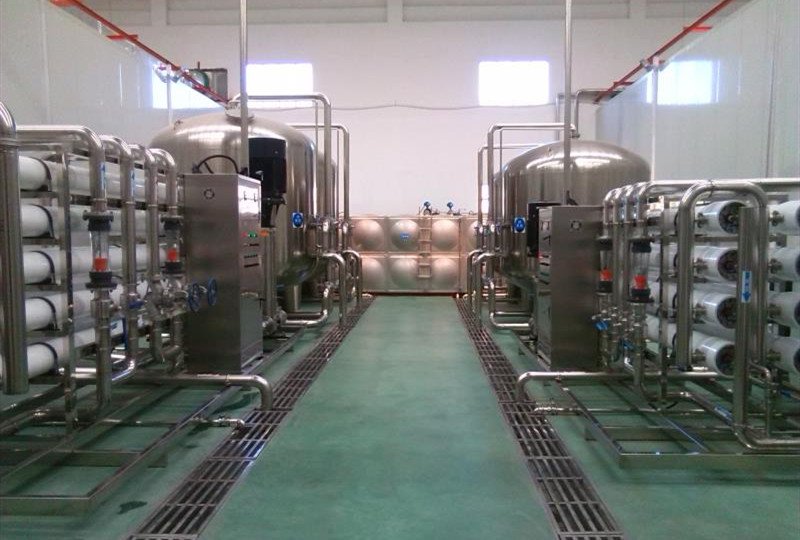

Water Treatment System

Water treatment system is the 1st step for beverage factory, it is the most important process even. The treatment system can be basically divided into three parts: preprocessing system, deep processing system and terminal processing system. Generally, pretreatment includes multi-media filters, activated carbon filter, softener, iron and manganese removal filter, ultra-filtration, micro-filtration.,etc. Deep treatment includes membrane treatment and ion exchange. Terminal treatment covers ozone, UV, etc.

Water treatment system capacity is based on customer filling speed and other water consumption purpose. The pump and piping system used in such system all belong to food grade SUS304-316L. The online detection for Ozone, pH, conductivity all equipped with machines for customer to monitor the quality all the time.

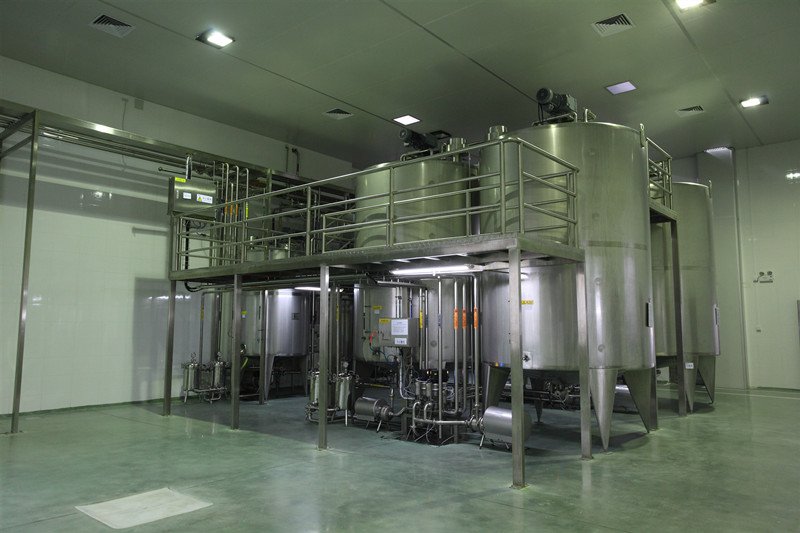

Beverage Processing system

This machine is mainly used in juice, carbonated beverage preparing, blending, sterilizing.,etc before filling. The equipment adopts professional process design, high-quality sanitary valve fittings, precision control instruments and electronic control components. It provides customers with various equipment such as extraction, sugar melting, dispensing, homogenization, degassing, UHT.,etc TURNKEY project.

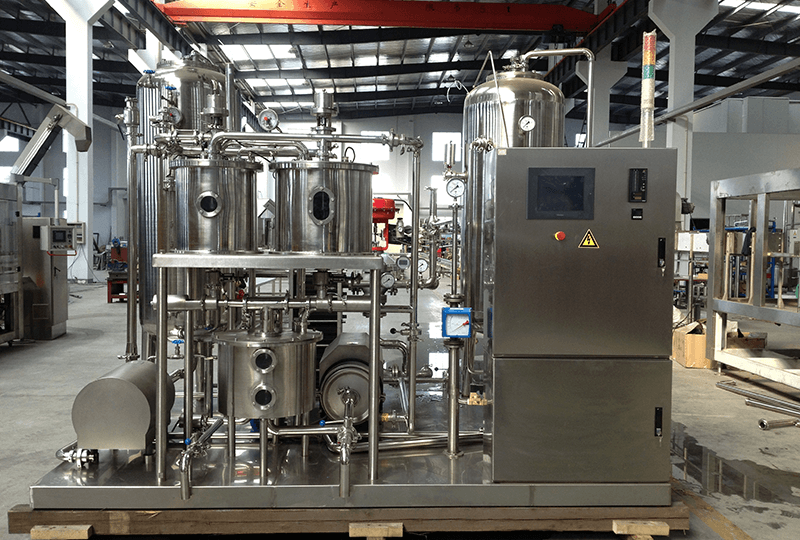

Automatic CO2 Saturator

This machine is mainly used in carbonated beverage production line. It is the core equipment of the production line, 5 tanks type design. It has the advantages of high mixing ratio accuracy, twice carbonation and high CO2 content.

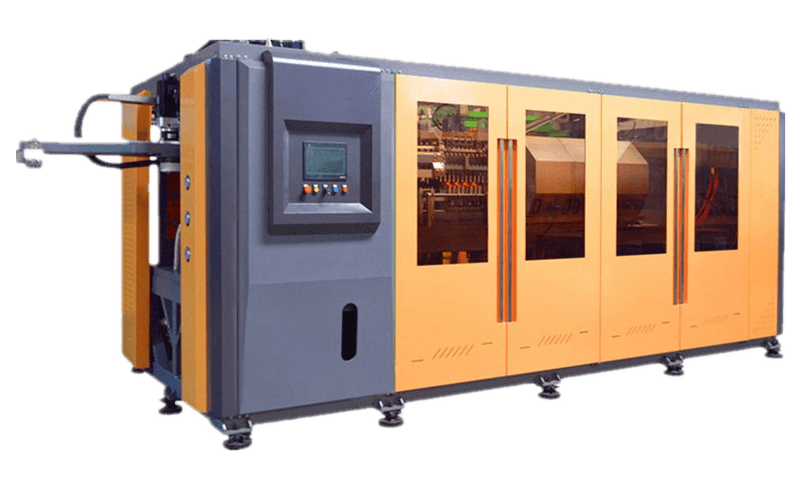

Blow Molding System

Rotary blowing machine is research and developed based on Europe technology and combined with domestic demands for PET bottles. Adopt world famous brand components for control, electrics, pneumatic and manufactured for more than 12000BPH beverage production line, maximum stable capacity is 2000BPH each cavity, based on 500ml bottle.

High degree of automation, point-to-point control, easy to sort out problems, easy to maintain.

It is suitable for middle-high speed PET bottled drinking water, carbonated beverage, fruit juice, tea and milk product.,etc.

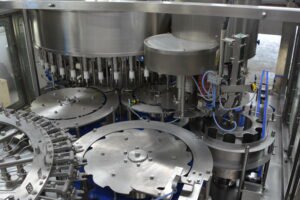

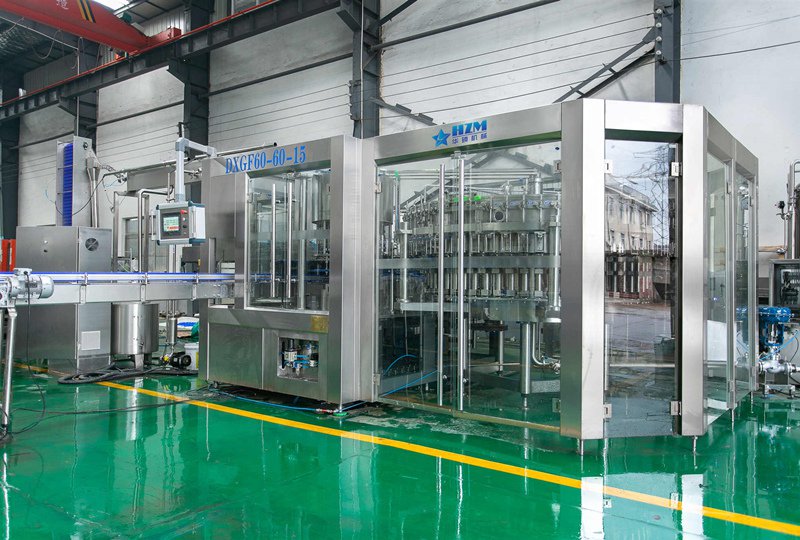

Filling System

Filling equipment is the central link between raw materials and filled products. Containers are transferred into filling system through conveyor and completed washing, filling and capping in this system.

Bottle Warmer

Bottle warmer can increase the temperature of beverage products according to different processes technology. Spraying time setting from 10 to 45 minutes and temperature can be adjusted also according to different product.

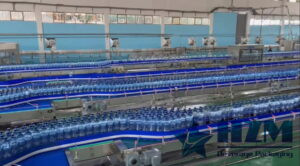

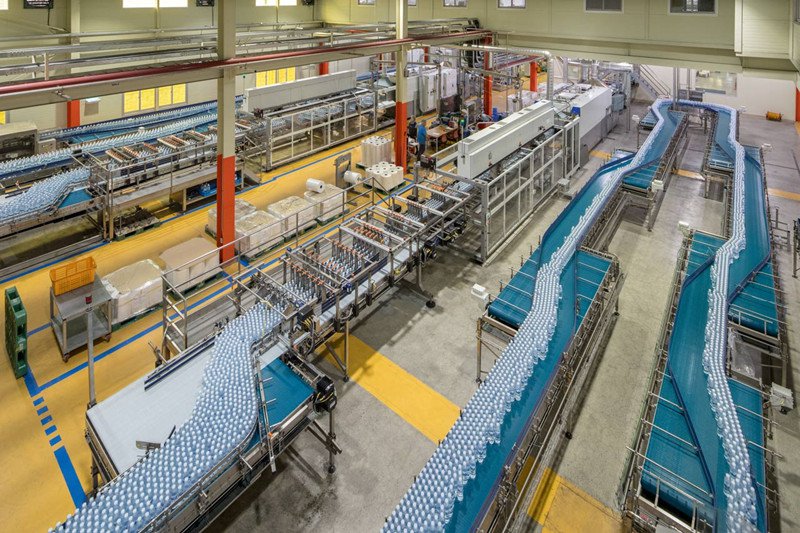

Conveyor System

The function of the conveyor system in the production line is like the blood of the human body. The product is conveyed to every process to ensure the smooth operation of the whole production line.

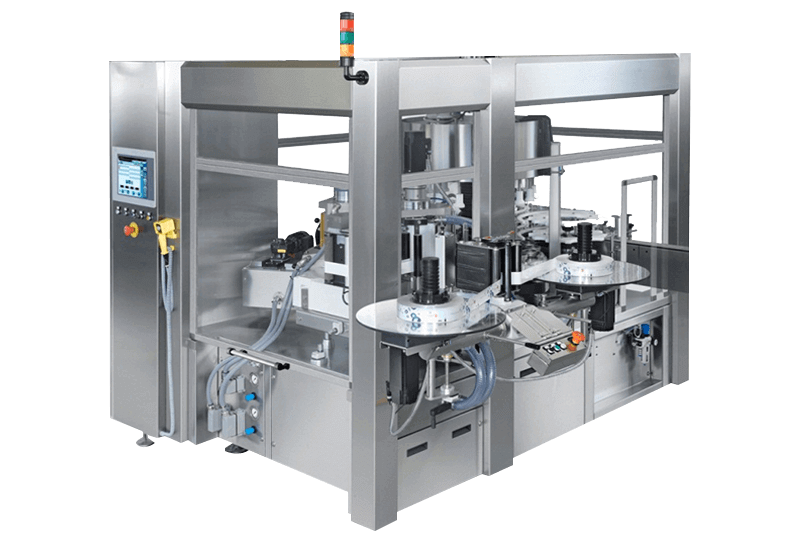

Labeling System

Labels are just like clothes for human. With beautiful and intact label is very important for attracting consumers to stop and choose. Also labels are just like Instructions for product, introduce himself to customers.

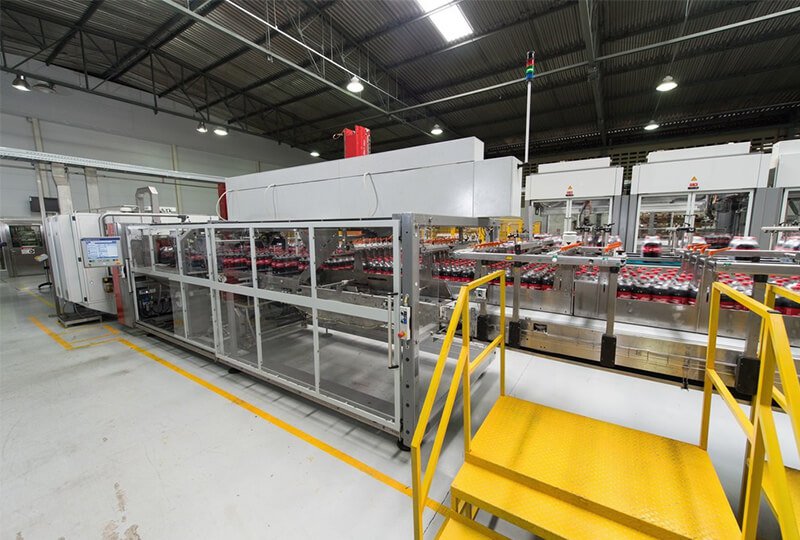

Packaging System

Packaging system is almost the end part of production line but very important for transportation and marketing, without well package and fantastic design cant get the key to open the market.

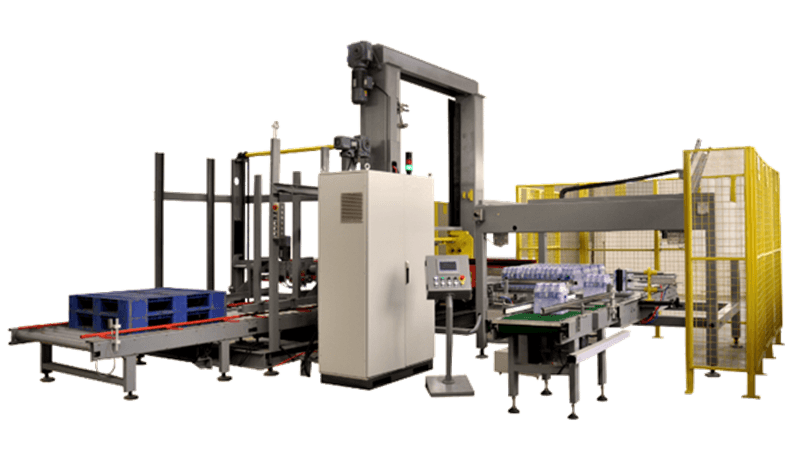

Palletizing System

Palletizing system is the last machinery for production line, from here go to warehouse or market directly. It is very necessary for high speed line and high automation production line now. It liberates a large number of workers and saved big cost for enterprise as well. Both carton and shrink packs are acceptable with great flexibility.

CSD Filling Line

Service Advantages

Efficient Response Before And After Sales

Always give efficient and timely response to customers, timely feed back pre-sales materials such as design scheme, design drawings, workshop layout to customers, and confirm the final scheme and place an order for production in the shortest time; Timely dispatch engineers to provide on-site installation guidance, and provide timely free spare parts and technical support to maximize the normal production and maintenance of customers.

Use Of High-Quality Raw Materials

Always use high-quality raw materials and imported components to ensure the stable and long-term operation of the equipment; Adhere to the use of imported electrical components to facilitate customer maintenance and replacement in the future.

Longer After-Sales Guarantee

Always adhere to the 24 month after-sales guarantee period, that is, provide free after-sales service and online and offline support within 24 months after the completion of equipment installation and commissioning.

More Comprehensive Technical Support

Always provide customers with the most comprehensive and perfect free technical support, including a series of technical data such as spare parts manual book, mechanical instructions, electrical schematic diagram, etc., to ensure the smooth use of customers to the greatest extent, which greatly facilitates the daily maintenance and operation of the machine by customers.
