Hot Filling Machine

PET bottle juice filling machine is mainly used in juice and non-carbonated beverage production line. It adopts PLC to control the whole machine operation. Filling temperature automatic setting and adjustable, hot filling technology, if the material temperature not reach the standard the material will be returned back to UHT. The capacity range is from 5000BPH up to 36000BPH normally.

Brief Introduction

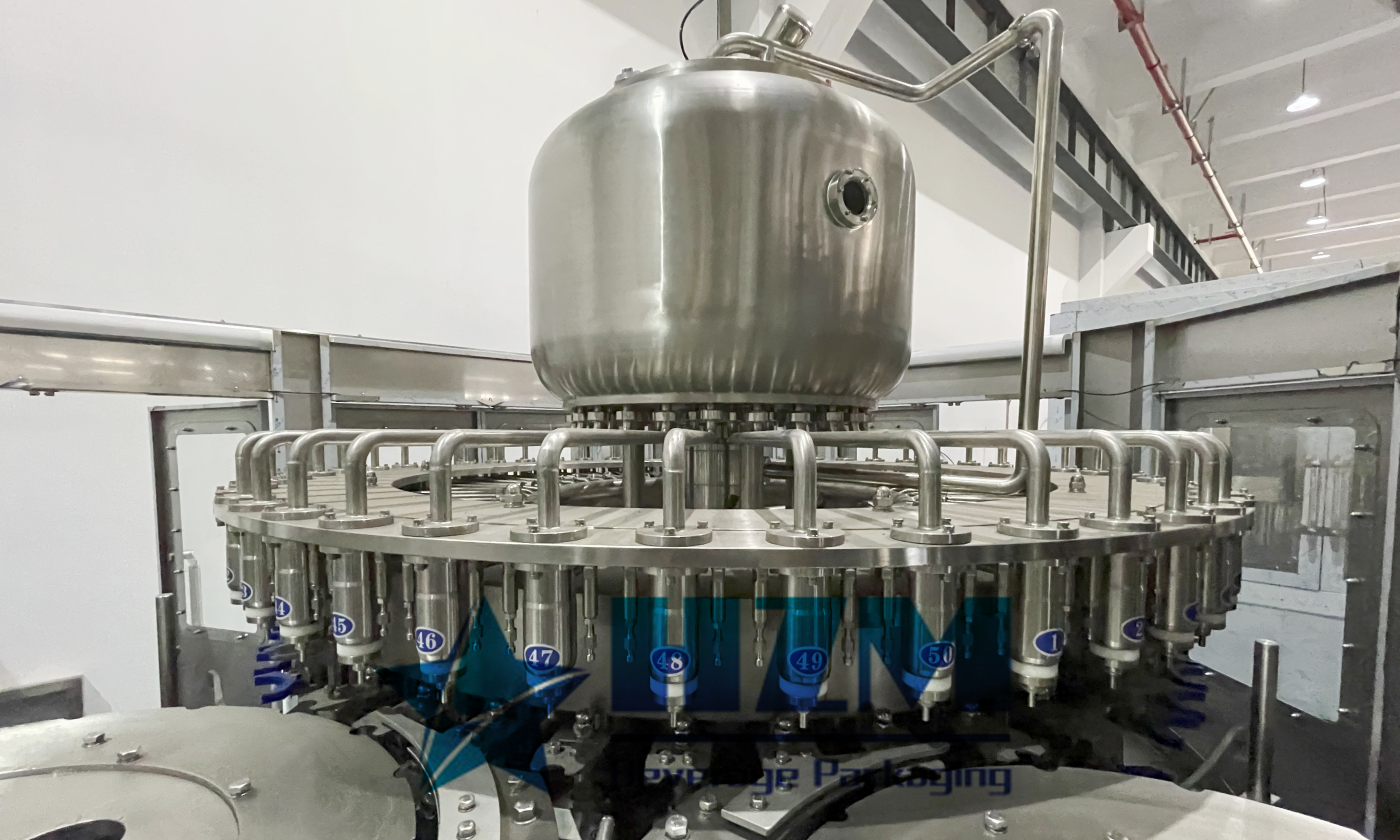

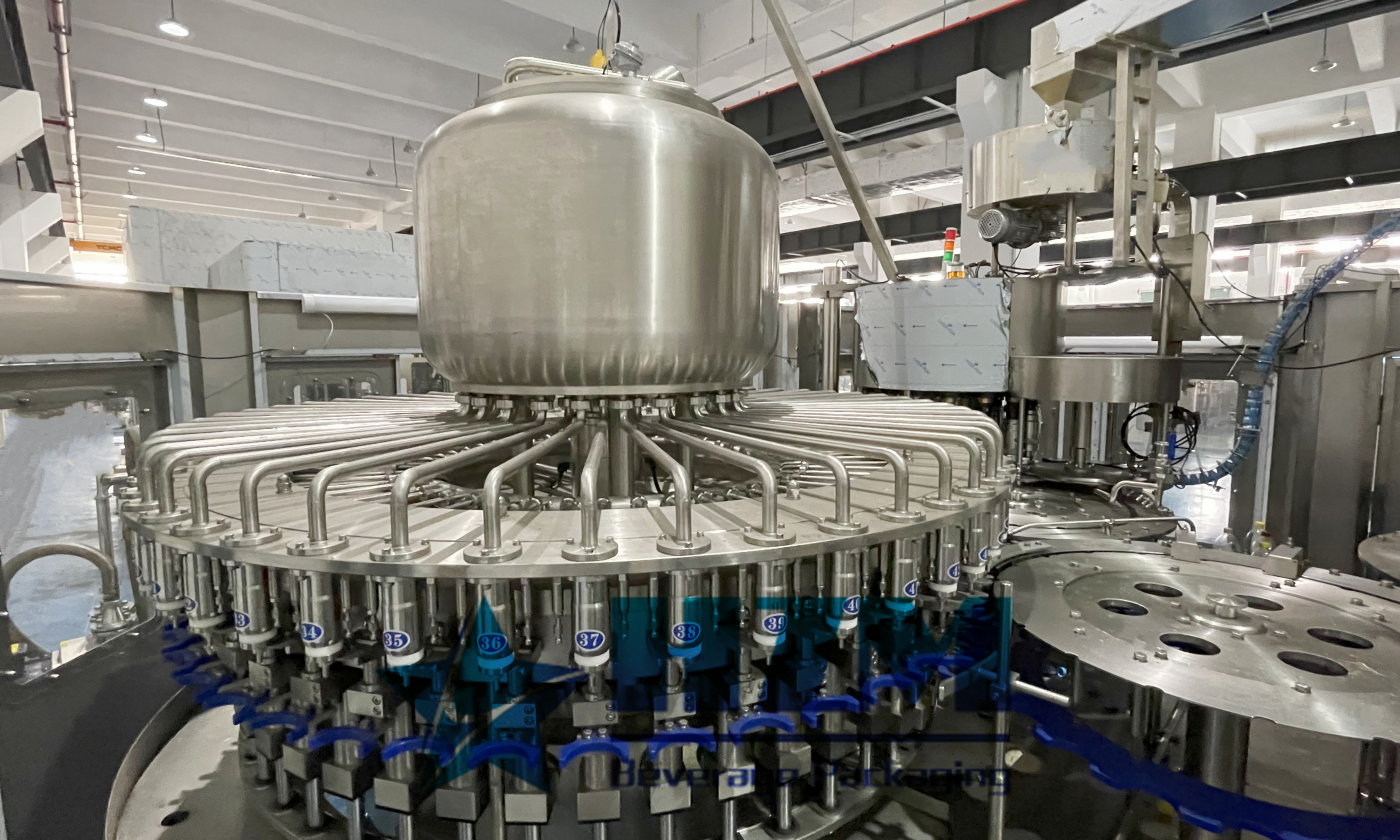

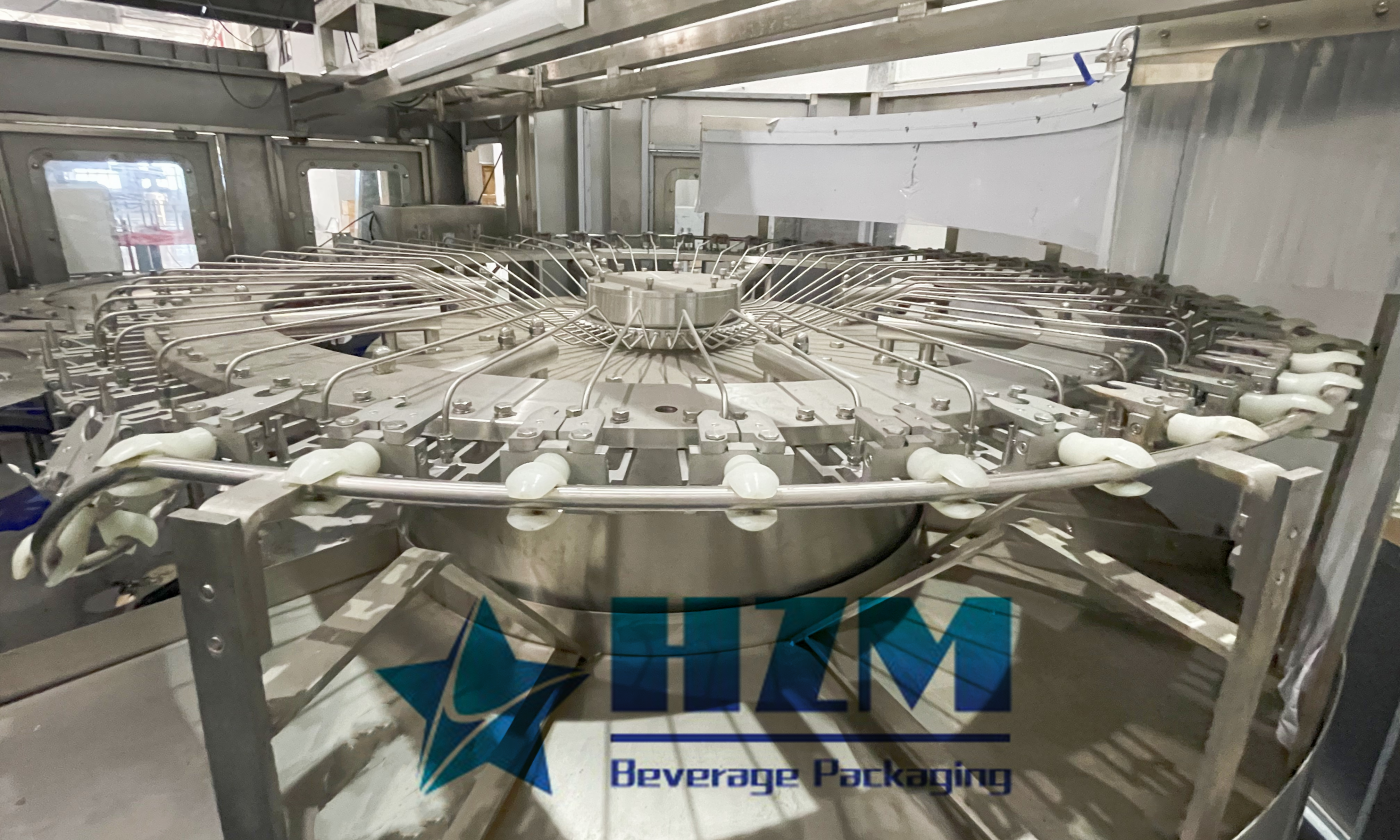

Hot filling machine is high temperature filling machine that combines rinsing with pure water rinsing, juice filling and capping in one machine. It is designed and developed based on foreign advanced technology according to filling process requires tea, juice and other beverages , and can achieve the requirements of hot filling, with complete CIP cleaning function. The production line is suitable for the juice with pulp, juice milk, tea, juice drinks, etc.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.This machine has a compact structure, perfect control system, easy to operate and highly automated.

2.Only by changing the star-wheel, arch board can realize fill bottle shape change.

3.The parts contact with product is made of quality SUS316/304, anti-corrosive, and easy to clean.

4.Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.

5.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

6.This machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.

7.The machine adopts perfect overload protective device can ensure the operator and machine safety.

8.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

9.The main electric and air-drive components are world famous brand products.

10.All control is advanced touch-screen operation and realize people-computer dialogue operation.

Product Configurations

NameSupplier
Main Motor & ReducerSEW-Germany
Rinsing PumpCNP-China
InverterSIEMENS-Germany
PLCSIEMENS-Germany
Touch ScreenSIEMENS-Germany
ContactorSCHNEIDER-France
Hot RelaySCHNEIDER-France
Air SwitchLEUZE/BANNER-Germany
Photoelectric SwitchBANNER-USA
Pneumatic ComponentsFESTO-Germany
Sliding BearingIGUS-Germany

Product Parameters

ModelWashing

Heads

Filling

Heads

Capping

Heads

Capacity

(Based on 500ml)

Bottle Diameter

(mm)

Bottle Height

(mm)

Dimension

(mm)

Power

(KW)

RXGF14/12/514125400050-110186-3502360*1770*27001.5
RXGF16/16/516165500050-110186-3502760*2060*27002.2
RXGF24/24/824248800050-110186-3502800*2230*27003.0
RXGF32/32/8323281200050-110186-3503550*2650*27004.0
RXGF40/40/104040101500050-110186-3504360*3300*27007.5
RXGF50/50/155050151800050-110186-3504720*3545*27007.5
RXGF60/60/156060152100050-110186-3505770*5288*270011.0
RXGF72/72/187272182800050-110186-3506540*4800*270011.0
RXGF80/80/228080223600050-110186-3507800*6380*270013.0
