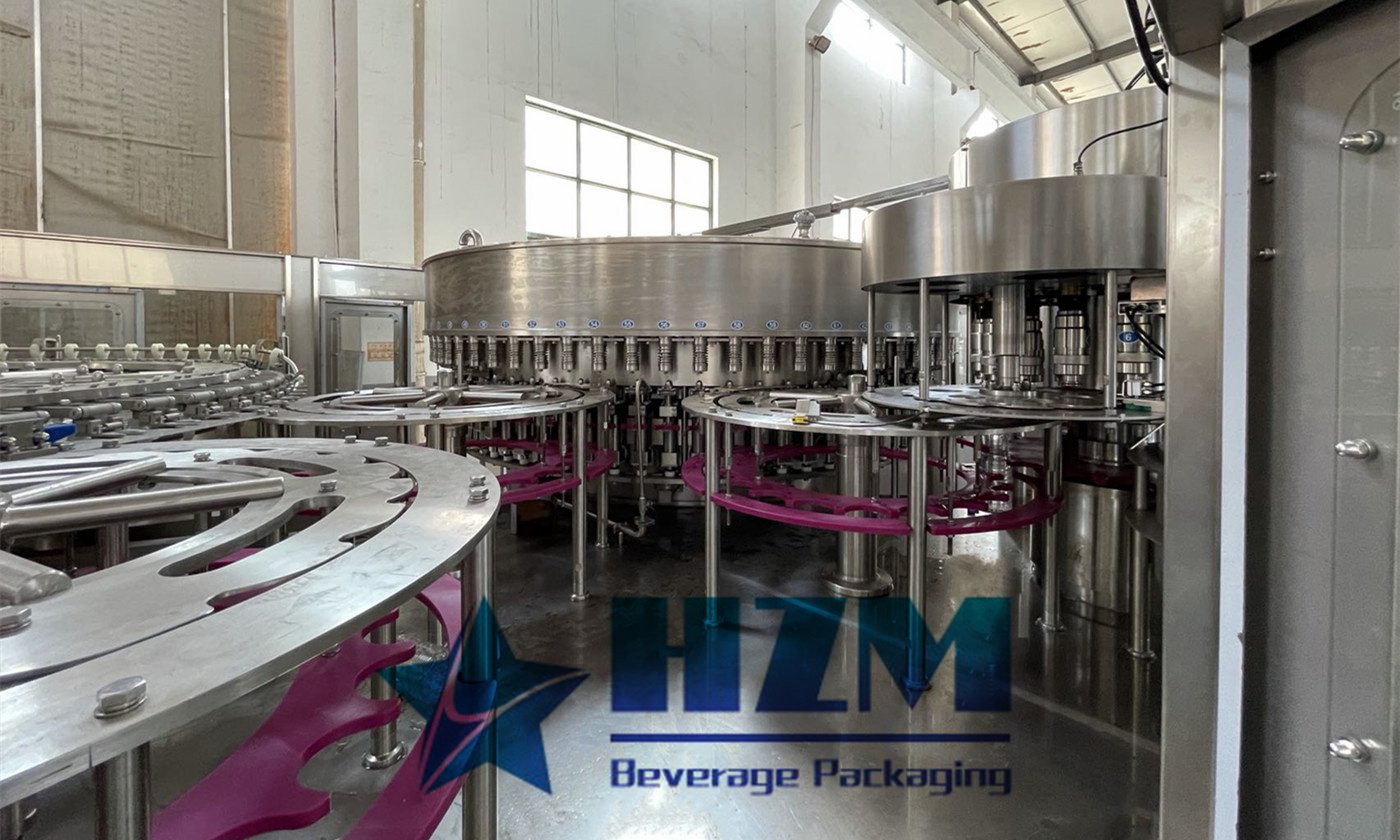

Automatic Water Bottle Filling Machine

PET bottle water filling machine a fully automatic multifunctional combined unit consisting washing, filling and capping. The water filling machine has the advantages of unique design, compact structure, beautiful appearance, complete funtions, strong adaptability, convenient operation and easy maintenance. The water filling machine capacity range starts from 5000BPH to 42000BPH by single one.

Brief Introduction

PET bottle water filling machine integrates washing, filling and capping. It’s full automatic in the whole process. PET bottle water filling machine is mainly suitable for the continuous operation of bottle washing, filling and sealing of mineral water, purified water, still water and other non gassy drinks. The original electrical component are made of foreign well-known brands, and all the places in contact with liquid materials are made of high-quality food grade stainless steel. The whole machine has high degree of automation, easy operation, wear resistance, stability and low failure rate.

Advantage

  • High accuracy
  • Long service life
  • High productive
  • Easy to operate
  • Long warranty
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.Water filling machine has a compact structure, perfect control system, easy to operate and highly automated.

2.Only by changing the star-wheel and some parts can realize different bottle volume filling.

3.The parts touch with product is made of SUS316/304, anti-corrosive, and easy to clean.

4.Rapid flow, highly filling precision, nicety liquid level without liquid loss to satisfy the filling process demand.

5.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

6.Water filling machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.

7.Water filling machine adopts perfect overload protective device can ensure the operator and machine safety.

8.Water filling machine control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

9.Water filling machine configurations used world famous brand.

10.Water filling machine control is HMI touch screen connect, easy and clear for operators.

Product Configurations

Name Supplier
Main Motor & Reducer SEW-Germany
Rinsing Pump CNP-China
Inverter SIEMENS-Germany
PLC SIEMENS-Germany
Touch Screen SIEMENS-Germany
Contactor SCHNEIDER-France
Hot Relay SCHNEIDER-France
Air Switch LEUZE/BANNER-Germany
Photoelectric Switch BANNER-USA
Pneumatic Components FESTO-Germany
Sliding Bearing IGUS-Germany

Product Parameters

Model Washing

Heads

Filling

Heads

Capping

Heads

Capacity

(Based on 500ml)

Bottle Diameter

(mm)

Bottle Height

(mm)

Dimension

(mm)

Power

(KW)

XGF14/12/5 14 12 5 5000 50-110 186-350 2360*1770*2700 1.5
XGF16/16/5 16 16 5 8000 50-110 186-350 2760*2060*2700 2.2
XGF24/24/8 24 24 8 12000 50-110 186-350 2800*2230*2700 3.0
XGF32/32/8 32 32 8 15000 50-110 186-350 3550*2650*2700 4.0
XGF40/40/10 40 40 10 18000 50-110 186-350 4360*3300*2700 7.5
XGF50/50/15 50 50 15 24000 50-110 186-350 4720*3545*2700 7.5
XGF60/60/15 60 60 15 30000 50-110 186-350 5770*5288*2700 11.0
XGF72/72/18 72 72 18 36000 50-110 186-350 6540*4800*2700 11.0
XGF80/80/22 80 80 22 42000 50-110 186-350 7800*6380*2700 13.0
