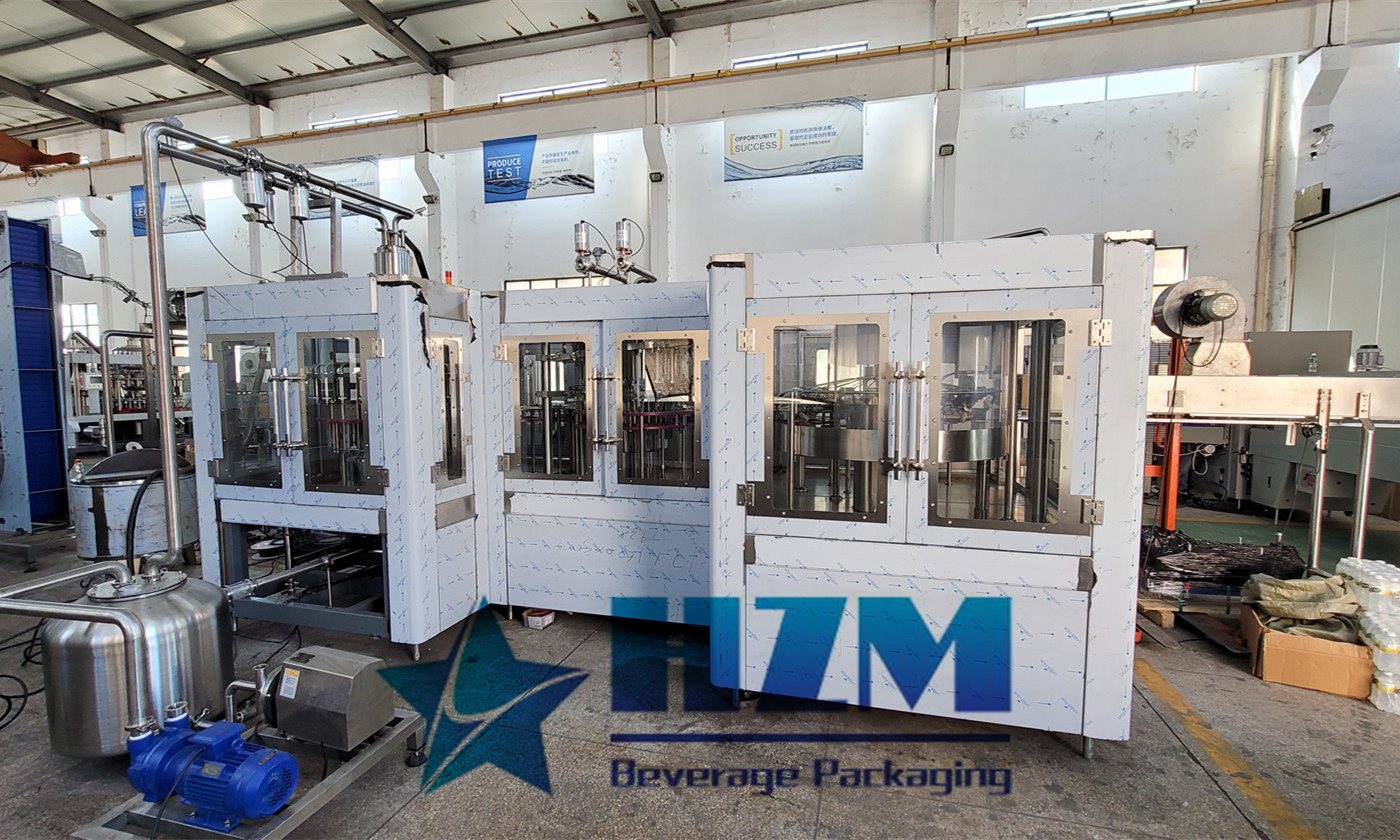

Automatic Pulp Juice Filling Machine

Automatic juice pulp filling machine is mainly used in juice and non-carbonated beverage production line. It adopts PLC to control the whole machine operation. Filling temperature automatic setting and adjustable, hot filling technology, if the material temperature not reach the standard the material will be returned back to UHT. The capacity range is from 5000BPH up to 36000BPH normally.

Brief Introduction

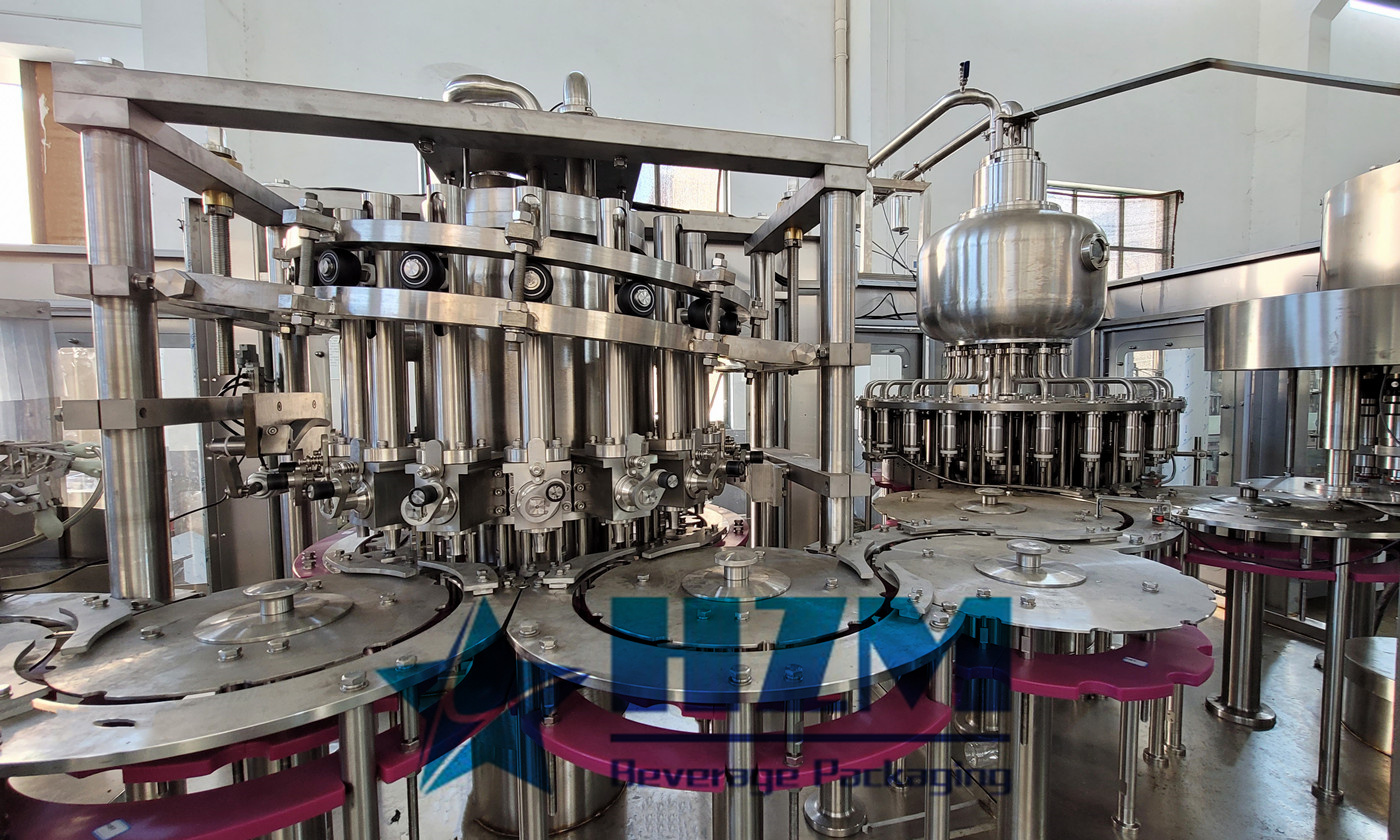

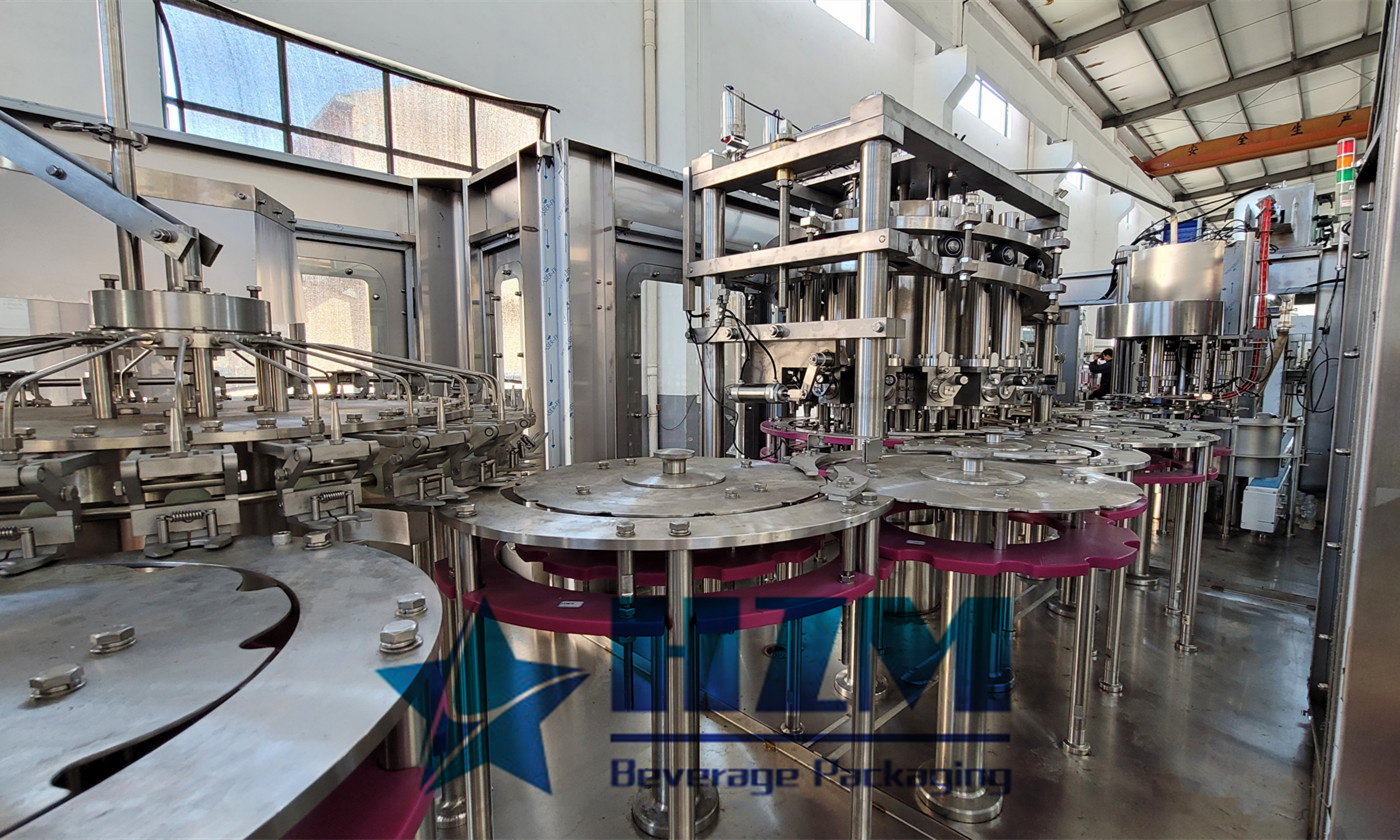

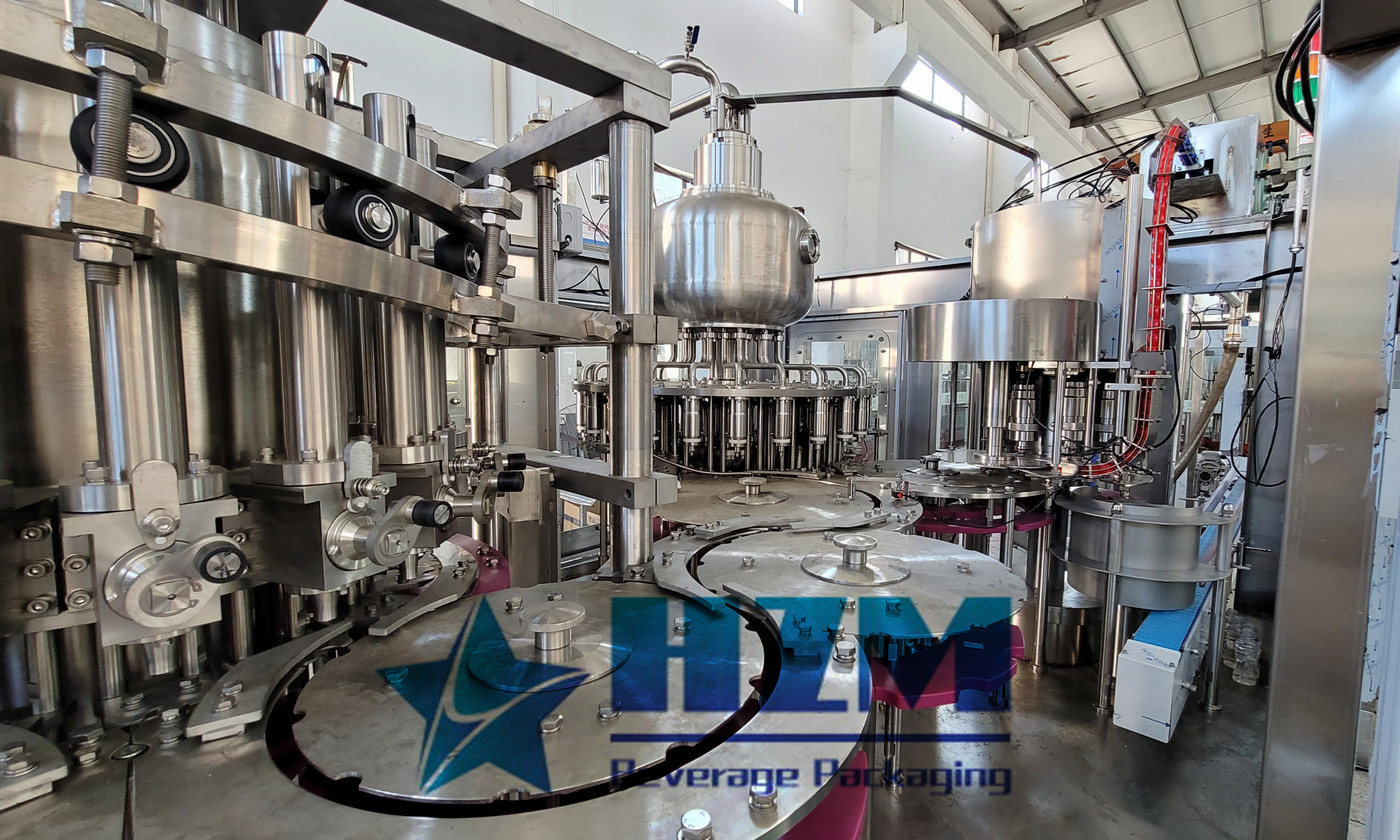

The 4 in 1 juice pulp filling machine is a hot filling machine integrating washing, pulp filling, juice filling and cap sealing. It is suitable for juice containing granules, such as orange juice, coconut juice, aloe juice, etc. The pulp fruit juice beverage filling machine adopts the advanced gravity filling principle. The filling is fast, stable and accurate. It is equipped with a perfect material return system, which can also realize independent air return during the return without contacting with materials, reducing the secondary pollution and oxidation of materials.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

1. This filling machine which contains washing (thimerosal washing、pure water washing)、pulp filling、juice filling and capping in one of middle (high) temperature filling machine. Meanwhile, pulp and juice filling in twice solve the problem of pulp in material is non uniform.

2.Only by changing the star-wheel, arch board can realize fill bottle shape change.

3.The parts contact with product is made of quality SUS316/304, anti-corrosive, and easy to clean.

4.Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.

5.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

6.This machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.

7.The machine adopts perfect overload protective device can ensure the operator and machine safety.

8.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

9.The main electric and air-drive components are world famous brand products.

10.All control is advanced touch-screen operation and realize people-computer dialogue operation.

Product Configurations

NameSupplier
Main Motor & ReducerSEW-Germany
Rinsing PumpCNP-China
InverterSIEMENS-Germany
PLCSIEMENS-Germany
Touch ScreenSIEMENS-Germany
ContactorSCHNEIDER-France
Hot RelaySCHNEIDER-France
Air SwitchLEUZE/BANNER-Germany
Photoelectric SwitchBANNER-USA
Pneumatic ComponentsFESTO-Germany
Sliding BearingIGUS-Germany

Product Parameters

ModelWashing

Heads

Filling

Heads

Capping

Heads

Capacity

(Based on 500ml)

Bottle Diameter

(mm)

Bottle Height

(mm)

Dimension

(mm)

Power

(KW)

GXGF16/16/16/516165600050-110186-3505450*2200*27003.0
GXGF24/24/24/8242481000050-110186-3506900*2900*27005.5
GXGF32/32/32/8323281200050-110186-3506110*3230*27005.5
GXGF40/40/40/104040101500050-110186-3507100*3300*27005.5
GXGF50/50/50/125050151800050-110186-3508380*3960*270011.0
GXGF60/60/60/186060152400050-110186-350920*4200*270011.0
