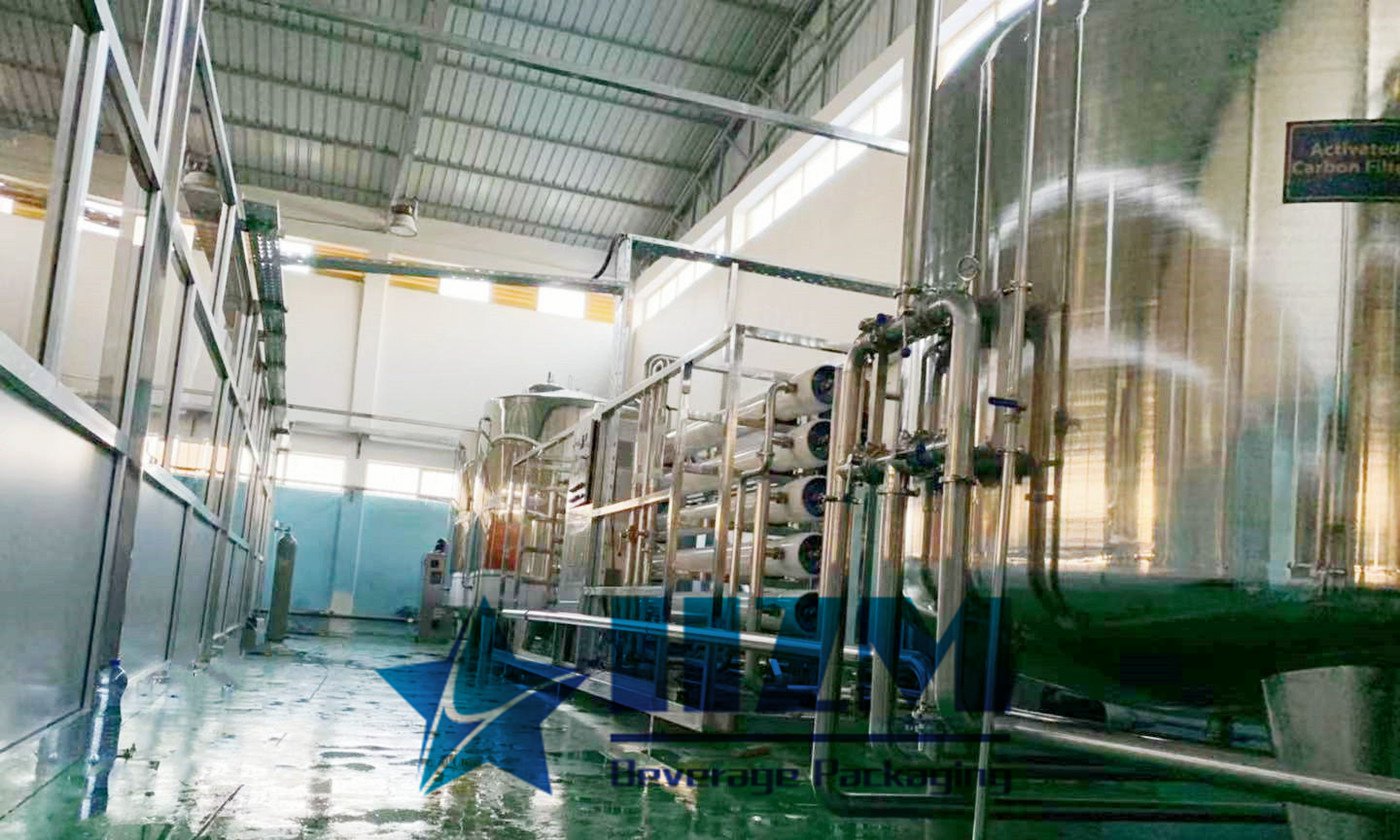

Water filtration system is mainly used for drinking water production line, it is first step for water production line. Depends on the raw water analysis report, we choose the right filtration system for customers. We use SUS304/316 food grade material for water filtration system, and electric operation valves. Online digital detectors for Ozone, pH, or Conductivity.,etc. Water filtration system minimum capacity from 3,000Lt/Hr, up to 150,000Lt/Hr.

Share This Product
Main Features

Water filtration system is mainly used for drinking water production line, it is first step for water production line. Depends on the raw water analysis report, we choose the right filtration system for customers. We use SUS304/316 food grade material for water filtration system, and electric operation valves. Online digital detectors for Ozone, pH, or Conductivity.,etc. Water filtration system minimum capacity from 3,000Lt/Hr, up to 150,000Lt/Hr.

Nano-filtration is one type of water filtration system, the membrane can separate inorganic salt, thus requiring lower levels of osmotic pressure when compared with reverse osmosis, As a result, the process of Nano-filtration need s considerably lower pressure from outside than reverse osmosis on the premise that a certain level of membrane flux can be guaranteed.

Nano-filtration enables the simultaneity of condensation and desalination. If used as a substitute for reverse osmosis, Nano-filtration can accelerate the condensation process, and magnify the cycle of concentration, which is an important measure of the condensation effect.



Nano-Filtration System Process Flow Diagram
Raw Water
1 Micron Filter
5 Micron Filter
Activated Carbon Filter
Quartz Sand Filter
Raw Water Pump
Raw Water Tank
High Pressure Pump
Nano-Filtration Device
Product Water Tank
Booster Pump
Ozone Mixer
External Supply Pump



External Supply
Titanium Tube Filter
Precise Quality Control


There is advanced processing equipment, strong technical force, make full use of modern CAD/CAM/CNC technology to ensure the qualified parts can be manufactured.



The qualifications of machinery not only in appearance, but also in the pursuit of the accuracy of details.


Each screw, Each process, Each equipment, we have strict control, precision testing.
