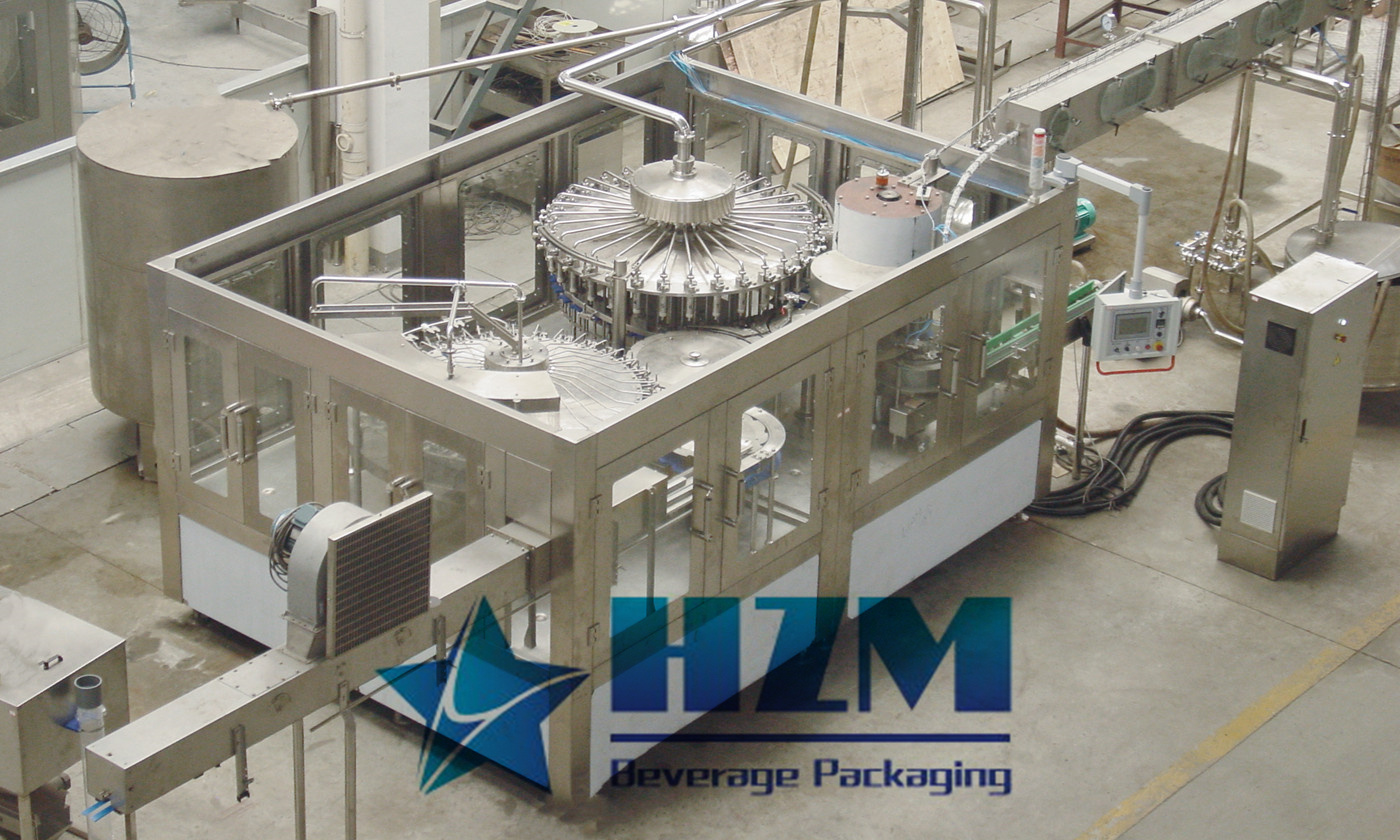

PET Bottle Energy Drinks Filling Machine

PET bottle energy drinks beverage filling machine is mainly used in juice and non-carbonated beverage production line. It adopts PLC to control the whole machine operation. Filling temperature automatic setting and adjustable, hot filling technology, if the material temperature not reach the standard the material will be returned back to UHT. The capacity range is from 5000BPH up to 36000BPH normally.

Brief Introduction

The energy drinks beverage filling equipment is applicable to the production of various drinks, such as energy drinks, sport drinks etc. At the same time, it can be used for the filling of pure water and mineral water. The juice beverage filling machine is fast, stable and accurate. It is equipped with a perfect material return system, which can also realize independent air return during the return process without contacting with materials, reducing the secondary pollution and oxidation of materials.

The energy drinks beverage production line can meet the technical requirements for hot filling 85-90 ℃. The filling valve and material inlet and outlet pipelines have no sanitary dead space. At the same time, it is equipped with CIP system. The juice beverage filling machine adopts magnetic torque type capping head to realize the functions of cathcing and screwing the cap. The capping torque can be adjusted.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.This machine has a compact structure, perfect control system, easy to operate and highly automated.

2.Only by changing the star-wheel, arch board can realize fill bottle shape change.

3.The parts contact with product is made of quality SUS316/304, anti-corrosive, and easy to clean.

4.Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.

5.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

6.This machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.

7.The machine adopts perfect overload protective device can ensure the operator and machine safety.

8.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

9.The main electric and air-drive components are world famous brand products.

10.All control is advanced touch-screen operation and realize people-computer dialogue operation.

Product Configurations

Name Supplier
Main Motor & Reducer SEW-Germany
Rinsing Pump CNP-China
Inverter SIEMENS-Germany
PLC SIEMENS-Germany
Touch Screen SIEMENS-Germany
Contactor SCHNEIDER-France
Hot Relay SCHNEIDER-France
Air Switch LEUZE/BANNER-Germany
Photoelectric Switch BANNER-USA
Pneumatic Components FESTO-Germany
Sliding Bearing IGUS-Germany

Product Parameters

Model Washing

Heads

Filling

Heads

Capping

Heads

Capacity

(Based on 500ml)

Bottle Diameter

(mm)

Bottle Height

(mm)

Dimension

(mm)

Power

(KW)

RXGF14/12/5 14 12 5 4000 50-110 186-350 2360*1770*2700 1.5
RXGF16/16/5 16 16 5 5000 50-110 186-350 2760*2060*2700 2.2
RXGF24/24/8 24 24 8 8000 50-110 186-350 2800*2230*2700 3.0
RXGF32/32/8 32 32 8 12000 50-110 186-350 3550*2650*2700 4.0
RXGF40/40/10 40 40 10 15000 50-110 186-350 4360*3300*2700 7.5
RXGF50/50/15 50 50 15 18000 50-110 186-350 4720*3545*2700 7.5
RXGF60/60/15 60 60 15 21000 50-110 186-350 5770*5288*2700 11.0
RXGF72/72/18 72 72 18 28000 50-110 186-350 6540*4800*2700 11.0
RXGF80/80/22 80 80 22 36000 50-110 186-350 7800*6380*2700 13.0
