Glass Bottle Juice Beverage Filling Machine

Glass bottle juice beveragefilling machine is mainly used in glass bottled beverage production line, including fruit juice etc. The equipment with high degree automation and multiple security protection. This machine is suitable for glass bottled beverage products with production capacity ranges from 3,000BPH to 24,000BPH based on 500ml volume.
Brief Introduction

Glass bottle juice beverage filling machine has a unique design combining the three parts of bottle washing, filling and capping in one machine to decrease main power, save space and avoid the air pollution among the three parts. It is automatic in total process and suitable for all kinds of fruit juice, tea drinks, energy drinks etc which is used for filling pet bottle. Glass bottle juice filling machine can use hot filling and mid-temperature filling technology according to customer filling process requirements. It also can be used for mineral water, pure water and many other no gas containing drinks.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

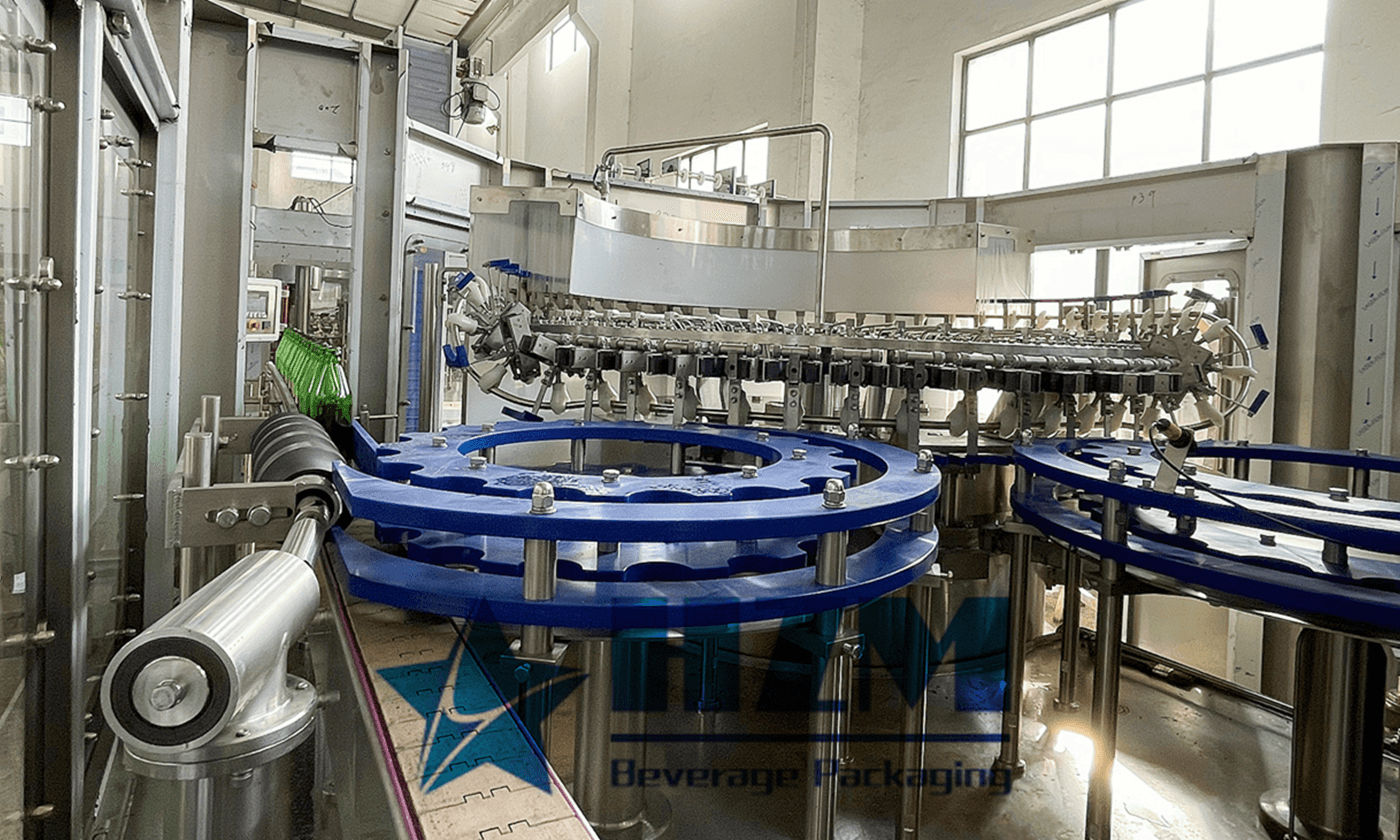

1.The gripper equipped with high-efficient spray nozzle, it can develop to any position of inside of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.

2.Adopted Germany IGUS anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.

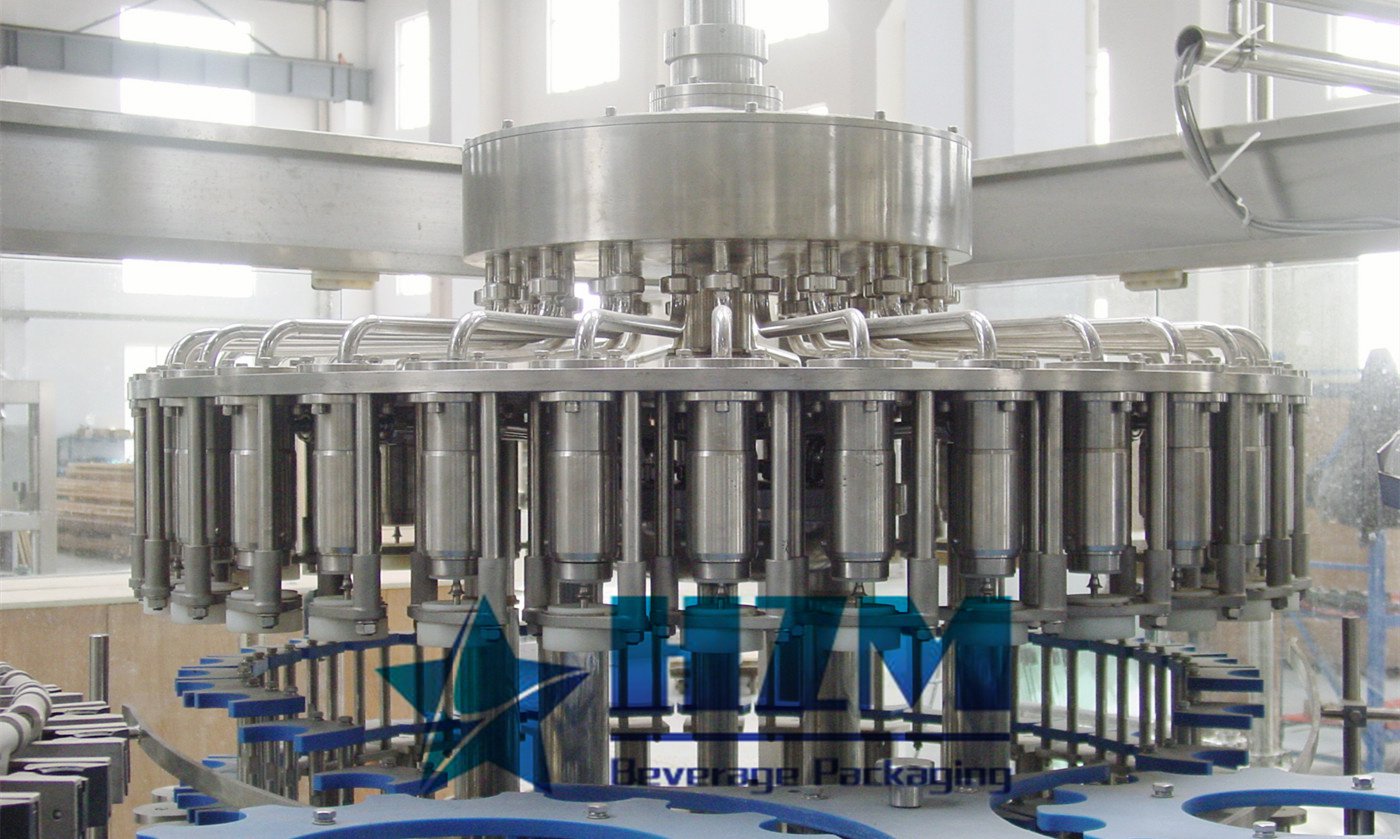

3.The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole filling valve is made of 316L.

4.The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the juice pipe, liquid tank and filling valve etc. effectively.

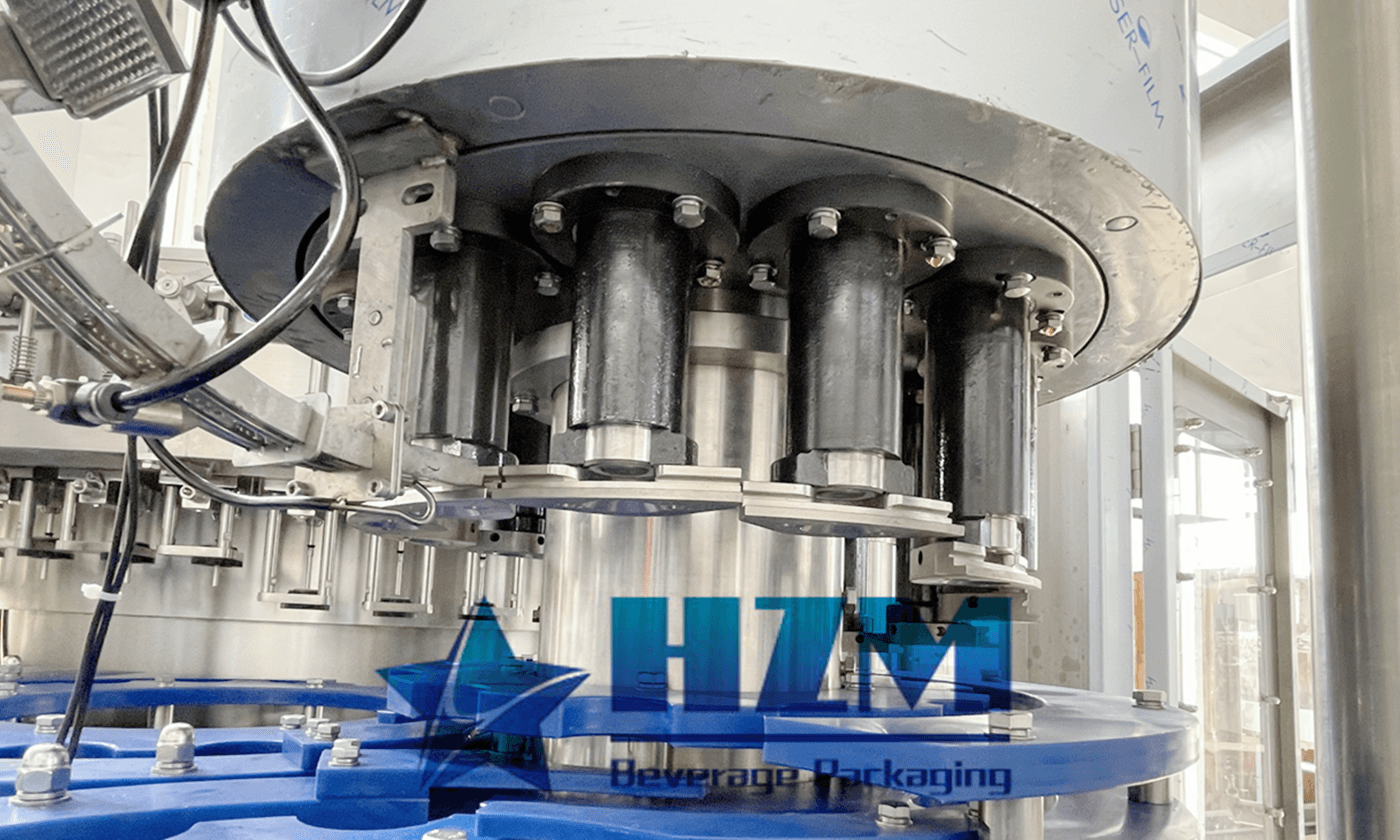

5.The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.

6.There are aseptic nozzles between the transition poking wheel and filling parts to rinse the product rested in the bottleneck screw parts.

7.There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.

Product Configurations

NameSupplier
Main Motor & ReducerSEW-Germany
Rinsing PumpCNP-China
InverterSIEMENS-Germany
PLCSIEMENS-Germany
Touch ScreenSIEMENS-Germany
ContactorSCHNEIDER-France
Hot RelaySCHNEIDER-France
Air SwitchLEUZE/BANNER-Germany
Photoelectric SwitchBANNER-USA
Pneumatic ComponentsFESTO-Germany
Sliding BearingIGUS-Germany

Product Parameters

ModelWashing

Heads

Filling

Heads

Capping

Heads

Capacity

(Based on 500ml)

Bottle Diameter

(mm)

Bottle Height

(mm)

Dimension

(mm)

Power

(KW)

RXGF14/12/514125400050-110186-3502360*1770*27001.5
RXGF16/16/516165550050-110186-3502760*2060*27002.2
RXGF24/24/824248800050-110186-3502800*2230*27003.0
RXGF32/32/8323281000050-110186-3503550*2650*27004.0
RXGF40/40/104040101400050-110186-3504360*3300*27007.5
RXGF50/50/155050151800050-110186-3504720*3545*27007.5
RXGF60/60/156060152400050-110186-3505770*5288*270011.0
RXGF72/72/187272183000050-110186-3506540*4800*270011.0
RXGF80/80/228080223600050-110186-3507800*6380*270013.0
