Full Electric Servo Type Blow Molding Machine

Automatic blow molding machine is suitable for drinking water, carbonated beverage, fruit juice, tea and milk product.,etc in PET bottles with production capacity ranges from 2,000BPH to 18,000BPH based on 500ml volume.Automatic blow molding machine is highly improved from previous generations in technology, structure, design, power and gas consumption, now becoming more high speed, lower consumption, more stable running.

Brief Introduction

Full electrical servo type blow molding machine is mainly used for all kinds of plastic bottle pre-form stretching. Far-infrared lamps are heat source, through servo motor driving chain to make pre-forms turning around for heating. Then performs go into mold and blowing into bottle by high pressure air.

Blowing machines parts should be smoothly running, action coordinated, precise mould closing, sensitive reaction and clear and accurate instructions. And these parts can cooperate with mould into qualified products. Adopting touch screen operation and running state is clear.

Main electrical components (touch screen, etc) adopts famous-brand products, power cylinder mainly adopts FESTO, SMC, Parker etc assuring its stability and durable.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.The continuous rotating preform feeding system is tightly combined with the machine platform, which effectively reduces the area occupied by the machine platform. The preform has no overturn and with simple structure.

2.Continuous heating system, the heating pitch between each preform is 38 mm, which can effectively use the lamp tube heating space, highly improved the heating efficiency.

3.Servo motor is used to ensure high-speed operation and precise positioning.

4.Blowing machines parts should be smoothly running, action coordinated,precise mould closing,sensitive reaction and clear and accurate Instructions. And these parts can cooperate with mould into qualified products. Adopting touch screen operation and running state is clear.

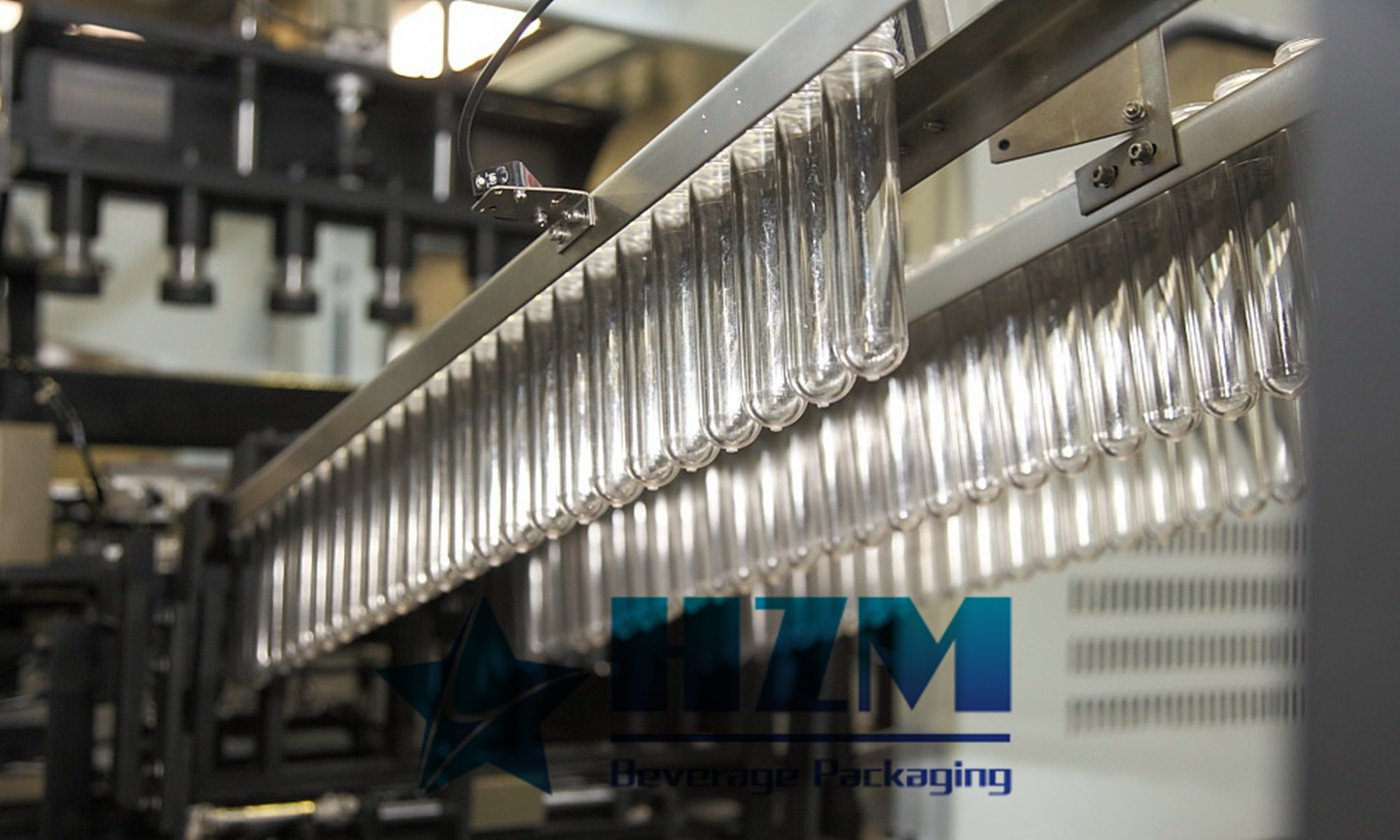

5.Equipped with full automatically perform sorter and elevator.

6.Main electrical components (touch screen, etc) adopts famous-brand products, power cylinder mainly adopts FESTO, SMC, Parker etc assuring its stability and durable.

Product Configurations

NameSupplier
PLCOMRON-Japan
Touch ScreenWENIEW-Taiwan China
Servo Motor&DriverYASKAWA-Japan
CylinderFESTO-Germany
Valve GroupPARKER-USA
Low Voltage Electrical PartsSCHNEIDER-France
Linear Guide RailABBA-Taiwan China

Product Parameters

ModelCavityClamping Force

(kg)

Clamping Stroke

(mm)

Max Bottle Volume

(L)

Neck Diameter Range

(mm)

Max Bottle

Diameter

(mm)

Max Bottle

Height

(mm)

Capacity

(Based on 500ml)

HZ-4000E448000120218-381053205400
HZ-4000S4320001100.618-38682406000
HZ-6000E660000140218-381053208000
HZ-6000S6480001200.618-38682409600
HZ-9000E960000120218-3810532012000
HZ-10E10800001200.618-306824013000
