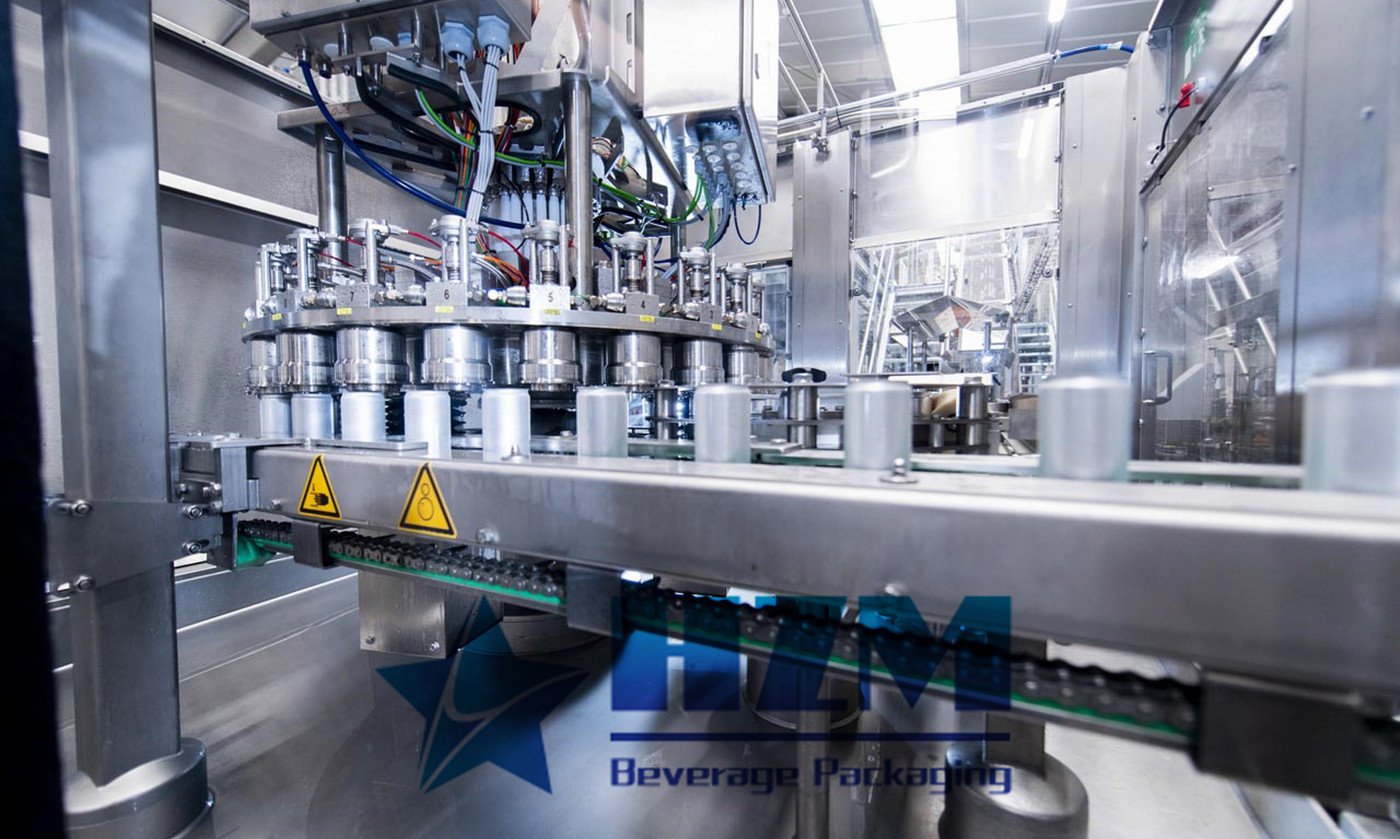

Can Filling Sealing Machine

CSD drinks cans filling machine is consist of filling and seaming machine. The rotary counter pressure canning system is suitable for CSD beverage can filling and seaming. The technology of filling valve and control system adopt original technology of Germany, while seaming technology is that of Switzerland FERRUM. Cans filling machine capacity usually from 5000BPH up to 36000BPH based on 330ml volume.

Brief Introduction

Cans filling and sealing machine is introduced from Germany company Angelus advanced technology, after digestion and absorption, self-designed and manufactured, it can be widely used in cans beer, beverages, mineral water filling and sealing. The machine has changed the traditional.

This machine adopts counter pressure principle with high-precision mechanical valve, high speed filling, high precision liquid level, no cans no filling. It has guiding devices with filling valve mouth to ensure the stability maximum from cans in and out filling machine. The filling tank adopts automatic lifting support method with worm gear box, to meet the different height of the cans.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.Cans filling machine adopts electronic filling valve with high-precision flow meter and isobaric filling; the filling valve has the function to exhaust air with carbon dioxide. Low amount of oxygen  is produced during the filling operation.

2.All the procedures during the filling process include: air exchange, carbon dioxide back pressure, filling and pressure relief which are all under PLC automatic control.

3.All filling valve sealings are made of bellows or rubber diaphragm. There is no dead corners, which has ensured internal filling valve is sterile. The filling valve is equipped with automatic CIP cleaning cup.

4.The filling machine controls the infeeding and stopping of the cans according to the accumulation of the cans upstream and downstream automatically.

5.The frame platform is of sanitary design. Round tube type filling bowl has no cleaning dead corner. Sanitary valve matrix is adopted for media connection.

Product Configurations

NameSupplier
Main Motor & ReducerSEW-Germany
Rinsing PumpCNP-China
InverterSIEMENS-Germany
PLCSIEMENS-Germany
Touch ScreenSIEMENS-Germany
ContactorSCHNEIDER-France
Hot RelaySCHNEIDER-France
Photoelectric SwitchBANNER-USA
Pneumatic ComponentsFESTO-Germany

Product Parameters

ModelFilling

Heads

Seaming

Heads

Capacity

(Based on 330ml)

Filling Level Accuracy

(mm)

Dimension

(mm)

Power

(KW)

CGS9/2926000±22855*1780*23505.0
CGS20/420412000±23153*1980*23505.0
CGS30/630618000±24800*2600*23507.2
CGS40/840824000±26500*2600*235011.0
CGS60/860836000±26500*2600*235011.0
