Automatic Sleeve Labeling Machine

Automatic sleeve labeling machine is mainly used in different kinds of bottles of fruit juice, tea and beverage, dairy products, purified water, condiments, sports drinks product.,etc label sleeve and shrink.Sleeve labeling machine speed from 100BPM up to 450BPM usually, by single or double head sleeve. Work with steam boiler or generator.

Brief Introduction

Automatic linear shrink sleece labeling machine is the advanced continous operation of the labeling machine. The labeling machine is mainly used for container labeling cylindrical, square or other special shape of detergents, beverages, mineral water, food etc. Labeling machine is control by PLC touch screen, all photo sensros are imported advanced configuration. The shrink labeling machine with high speed, high accuracy, stable performance, easy to operate and look elegant appearance.

Advantage

  • High accuracy
  • High productive
  • Easy to operate
  • Long warranty
  • Long service life
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, it’s maintenance is easy and maintain is simple, so it doesn’t influence production.

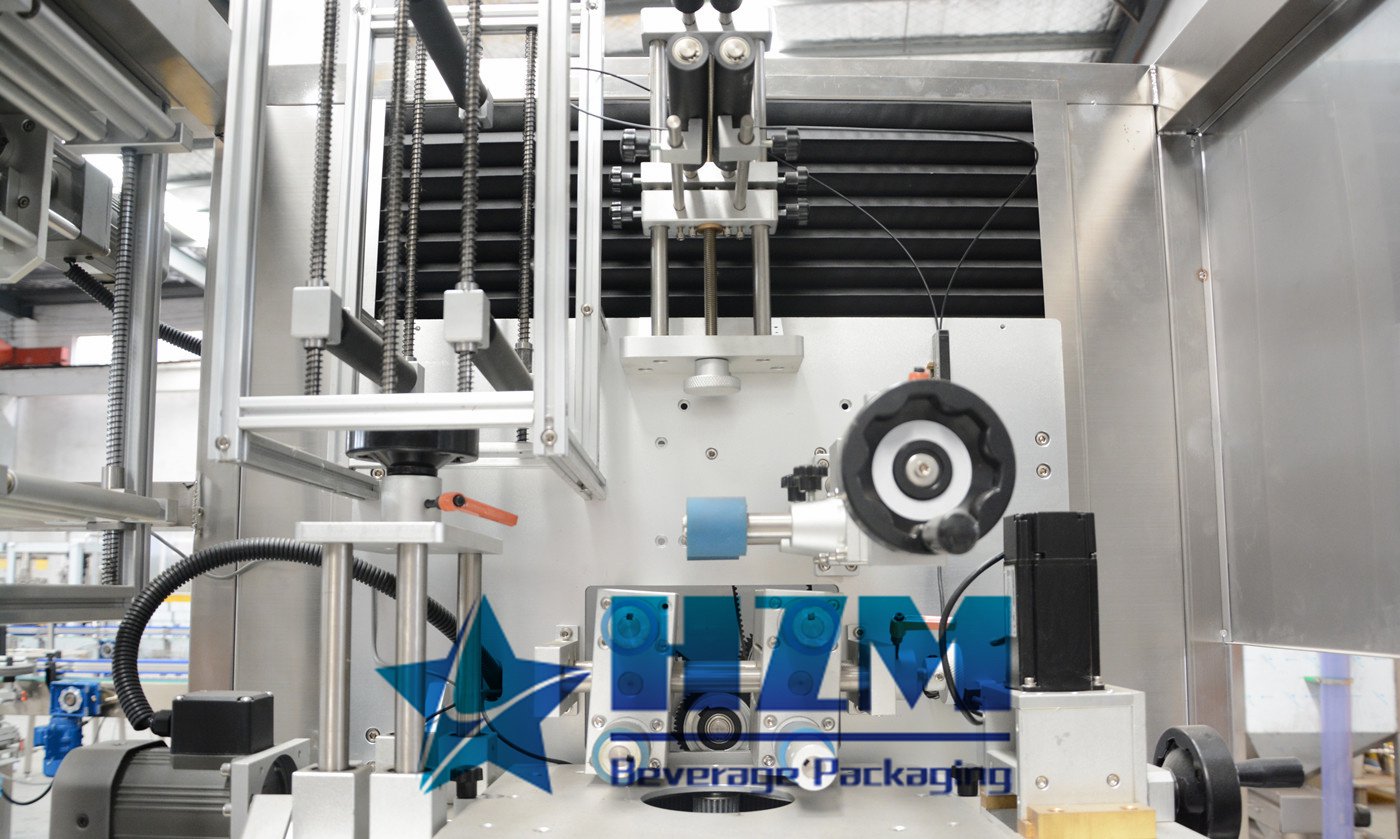

2.Double shrinking label feeding station, reasonable height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient. Besides, the cutting place is absolutely exact.

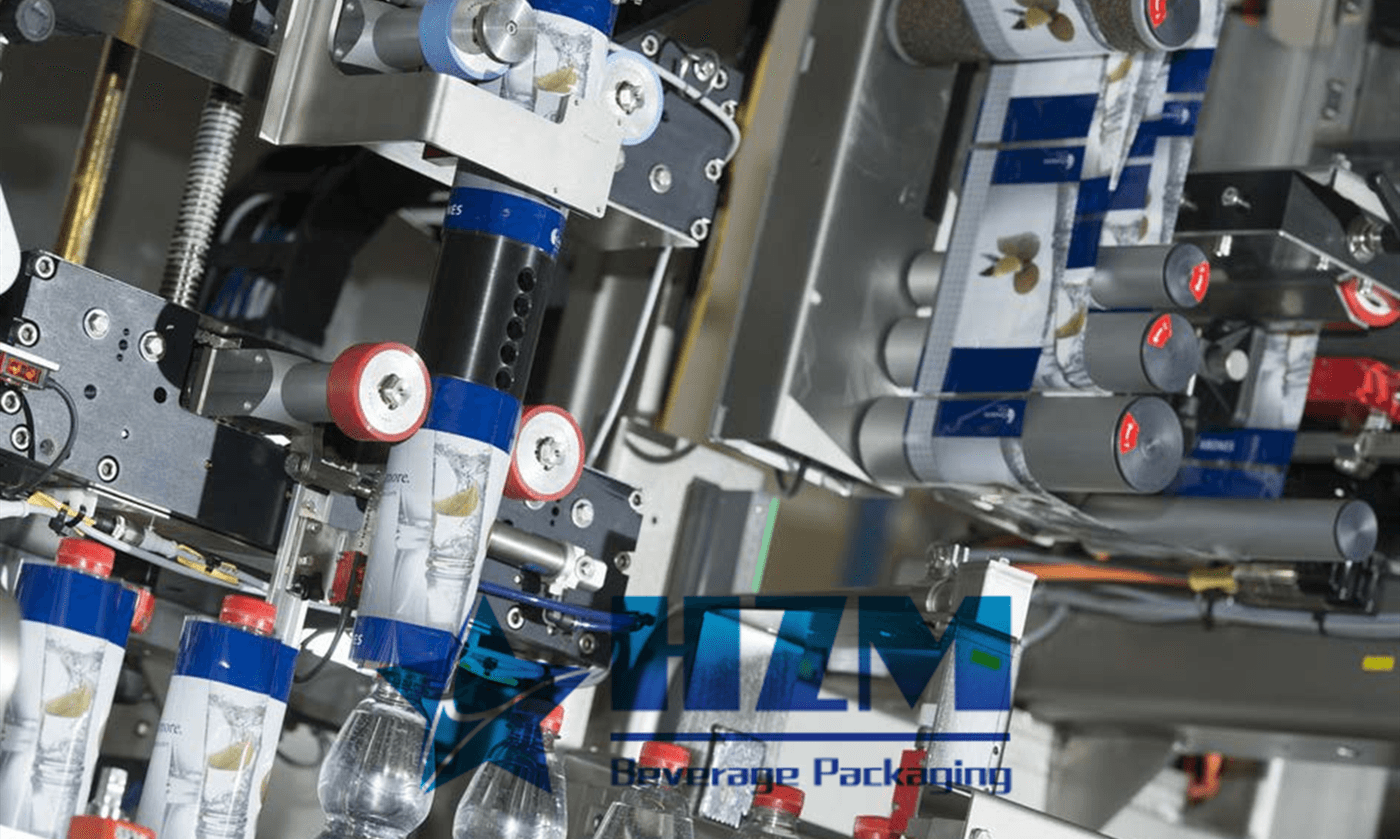

3.Label feeding equipment: driving synchronized tensility control the supply of label, the supply ability is 90meters per minute, volume label supply plane is ∮500mm, the internal diameter of paper tube will be 4′, 8′, 10′.the configuration of label feeding is stable tensility which enable the exact length of label and the stable, quick supply of label.

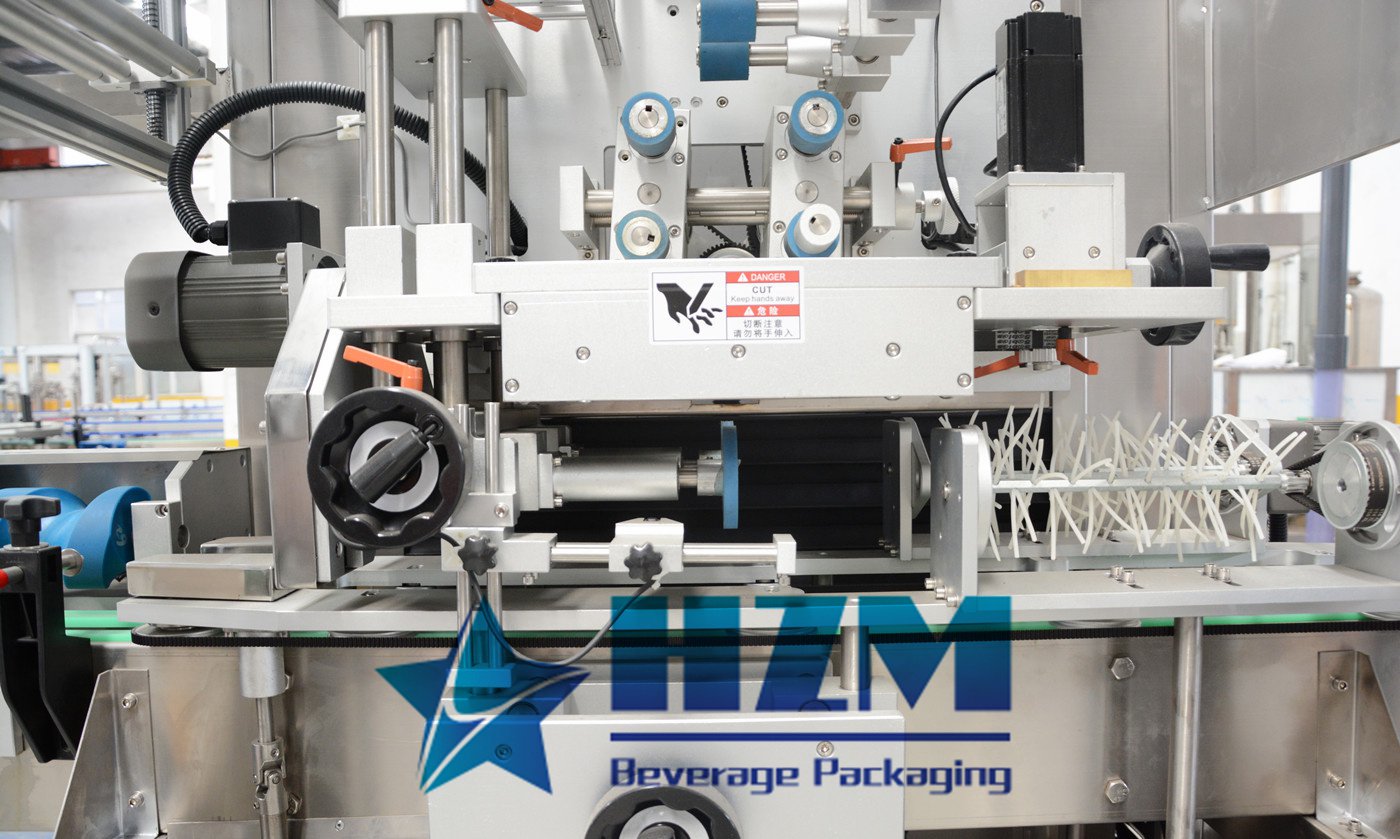

4.The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperated with the label synchronized location structure enable the precision of cut location within 1mm.

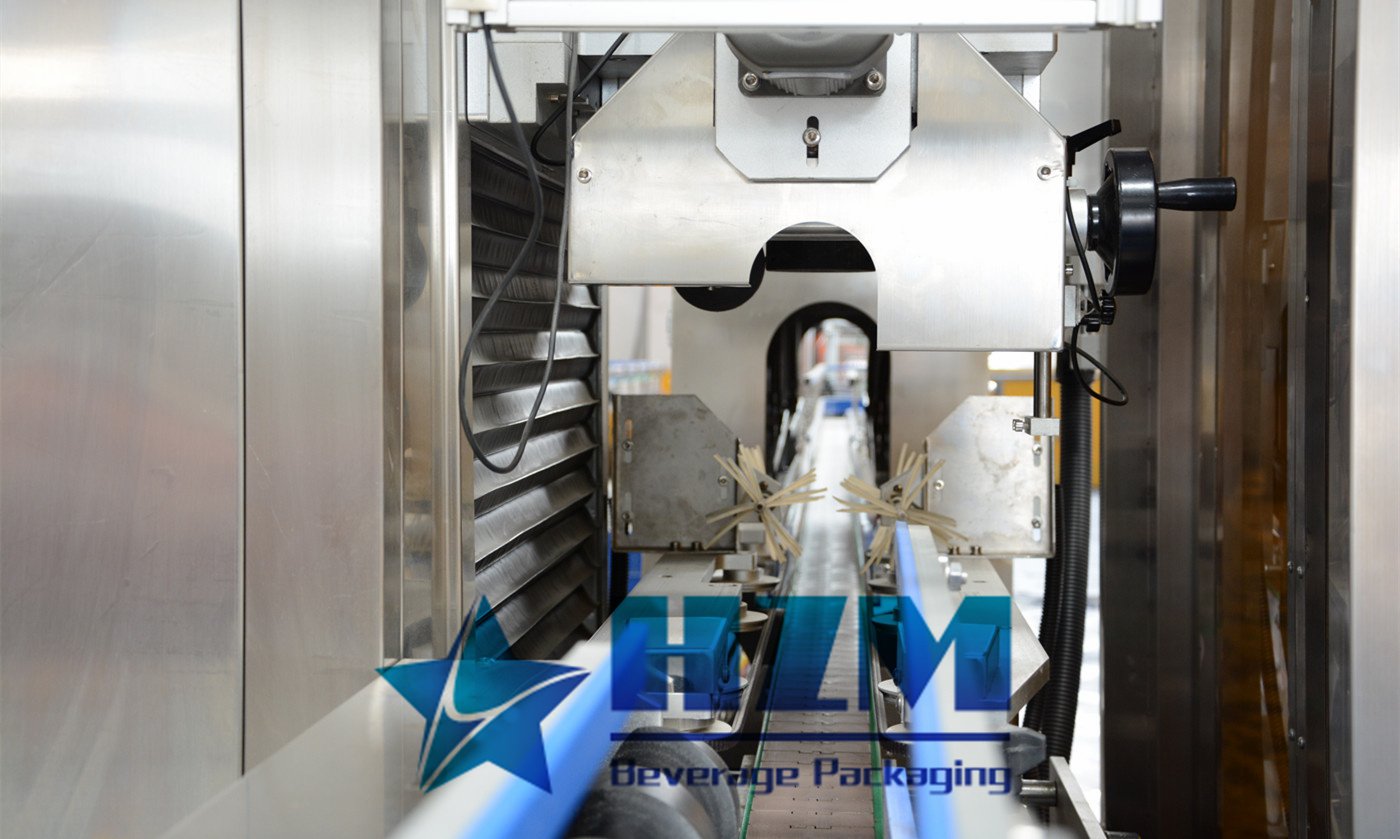

5.Special designed heat wind shrinking tunnel use high pressure wing machine which makes the shrink effect perfect. Compare with the traditional shrink tunnel which cannot shrink curved bottle, this head wind shrink tunnel can make the shrink effect satisfying.

Product Configurations

Name Supplier
PLC Omron-Japan
Servo Motor&Controller DELTA-Taiwan China
Inverter DANFOSS-Denmark
Touch Screen WEINVIEW-Taiwan China
Main Motor ZHONGDA-China
Low Voltage Electrical Parts SCHNEIDER-France
Sensor KEYENCE-Japan

Product Parameters

Model Capacity

(BPH)

Labeling accuracy

(mm)

Bottle Diameter

(mm)

Label Height

(mm)

Label thickness

(mm)

Dimension

(mm)

SHB-150 9000 ±1 φ28-φ125 30-250 0.035-0.13 2100*850*2000
SHB-250 15000 ±1 φ28-φ125 30-250 0.035-0.13 2100*850*2000
SHB-350 21000 ±1 φ28-φ125 30-250 0.035-0.13 2100*850*2000
SHB-400 24000 ±1 φ28-φ125 30-250 0.035-0.13 2100*850*2000
SHB-450 27000 ±1 φ28-φ125 30-250 0.035-0.13 2100*850*2000
