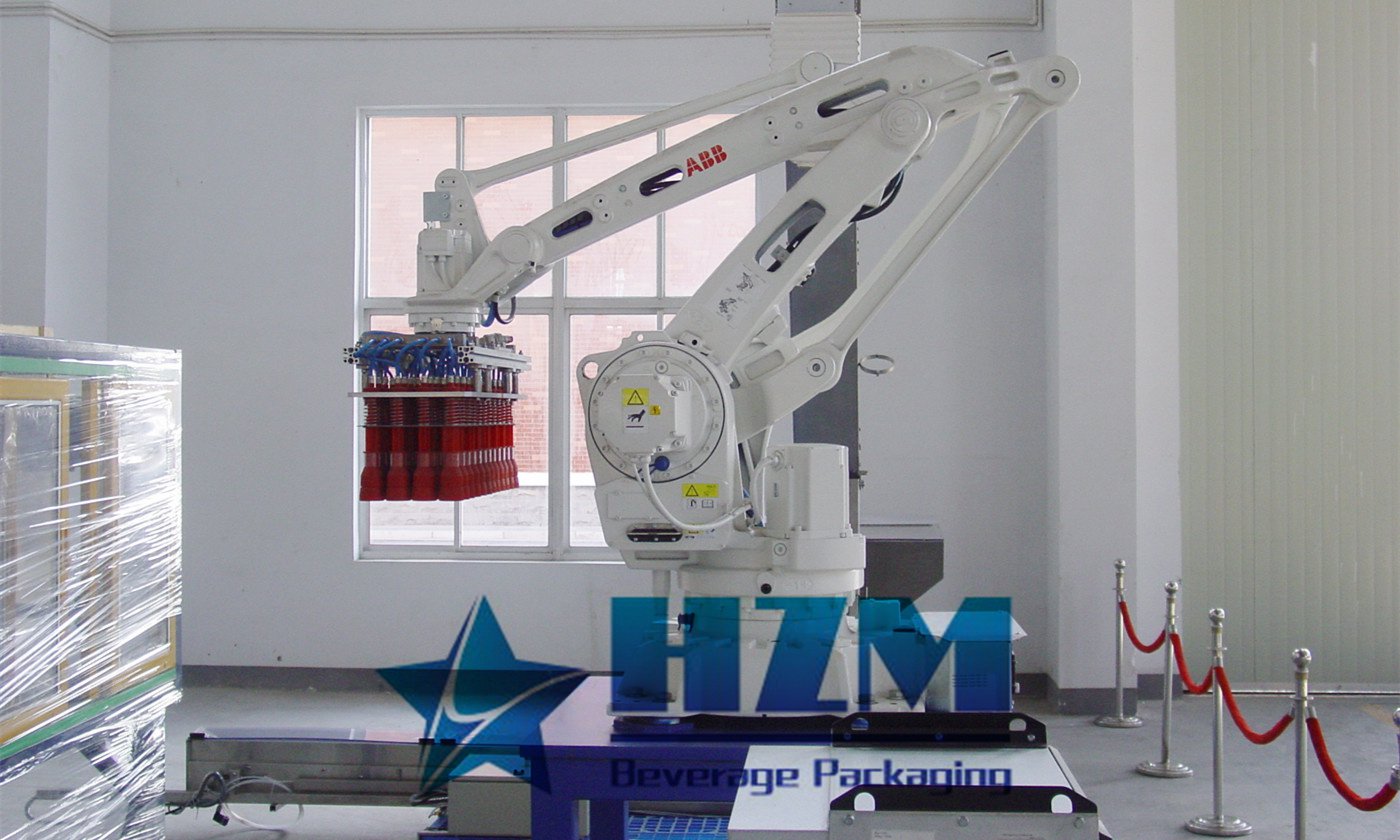

Automatic Robot Palletizing System

The robot palletizer can be used in many production line, providing intelligent, mechanization for production site. It is a palletising logistic system which can be used in the industries of beer, water, soft drink, milk, beverage and foodstuff etc. It is widely used for carton, plastic crate, bottle, bag, barrel, shrink wrapped product and can etc.

Brief Introduction

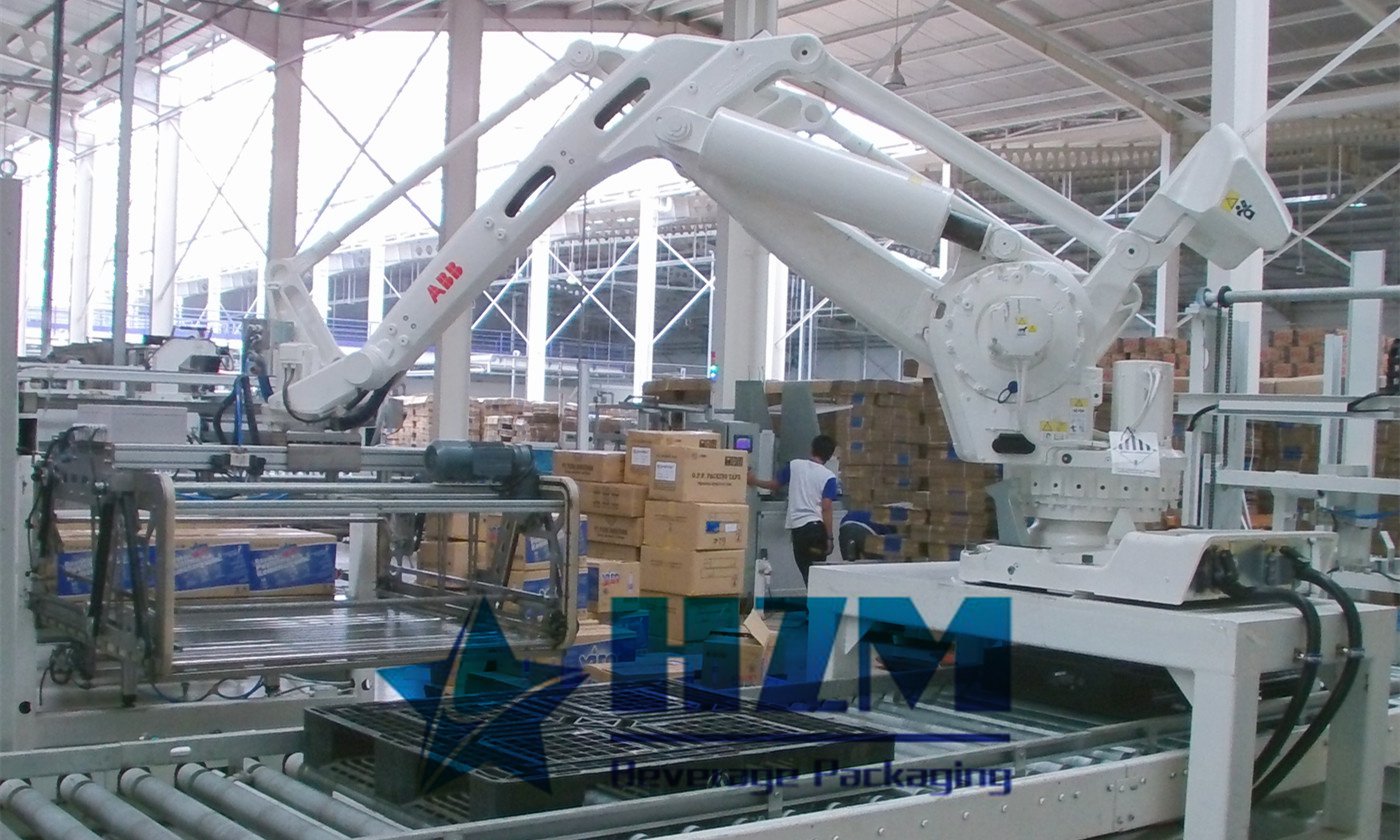

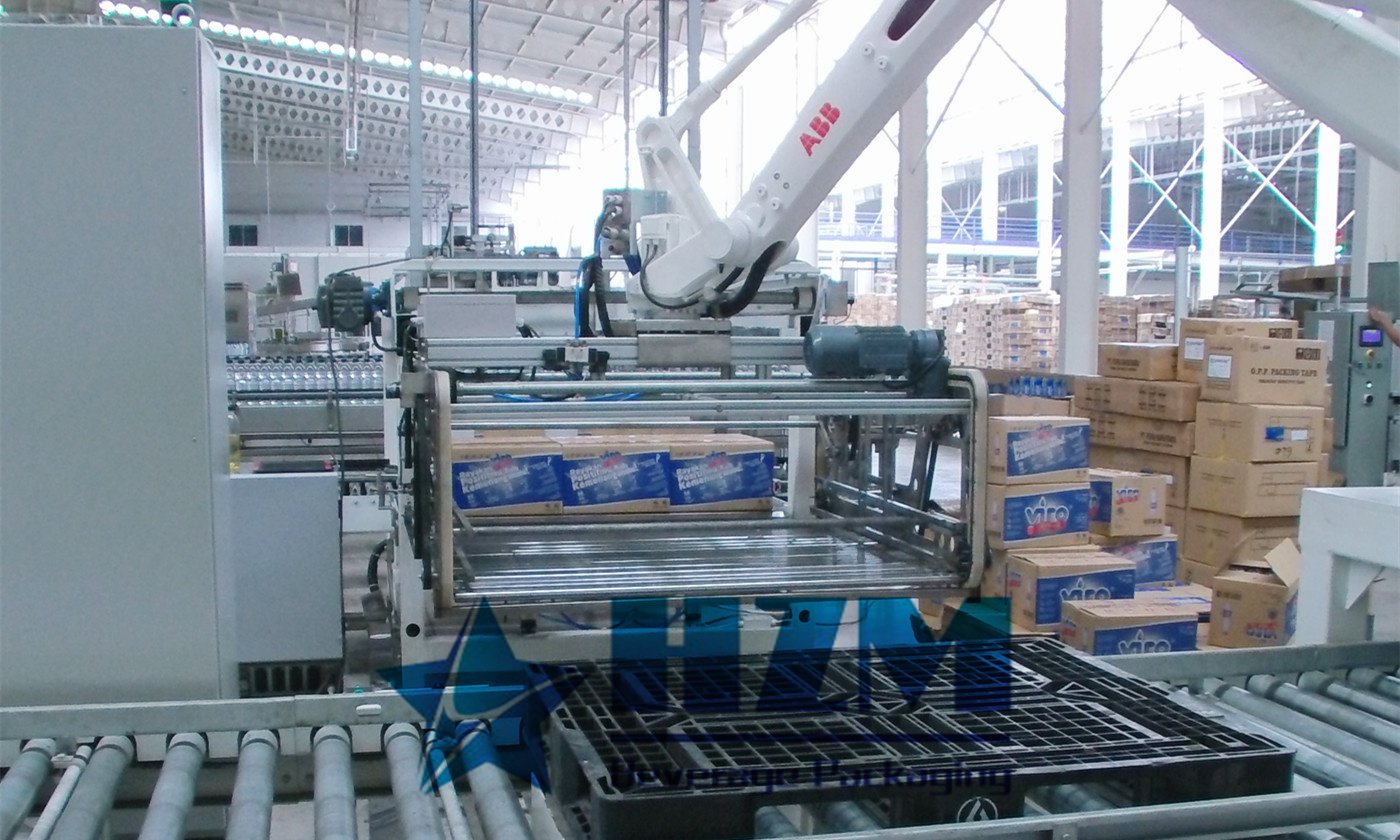

The full bottle box from previous stage, passes high speed belt machine, by turn set and follow web belt pass line and lateral move. At exit, counted by electric eye, arrive roller adjust box. When achieve 4 boxes, the push cart pushes box to storage shelf, push 3 times, when 4th time push, the cart pushes all boxes to catch box shelf, then robot deliver. All repeat. Follow program setup the robot work.

Advantage

  • High accuracy
  • Long service life
  • High productive
  • Easy to operate
  • Long warranty
Product Features
Product Parameters
Video

Product Features

1. Robot palletizer take less space, good for arrange.

2. Within robot life time, product may change, only need to change program and robot hand to suit.

3. One robot can do many lines in same time, or several robots do many lines, this improves whole line efficiency and reliability.

4. Pallet tech software tobe explored just for robot. No need program, just off line create program and download to robot.

5. Robot is building block design based on PC, easy to expand and unite. In robot life, can find possible use.

6. High production efficiency: During use, start and stop are stable, middle stage its speed fast, decrease work time, improve efficiency.

7. Easy operate: automatic run, auto adjust speed, run together with whole line.

8. Reasonable structure: It has reasonable mechanical structure, reliable pneumatic set and advanced electric control tech. Advanced tech, simple structure.

9. Safe: except protect shelf,net ,also has photoelectric protect setup. When people enter danger area, auto stop.

10. Meet sanitary requirement, and use no oil lubricate pneumatic set, avoid oil pollution.

Product Parameters

Item Tech. Data
Robot Action Clock 8 sencond once
 Robot Outside Diameter 2073X1184X 2092mm
Equipment Weight 1650kgs
Grab Each Time Box Number 4boxes
Total Power 22KW
Form Table Height 800mm
Pallet Conveyor Height 600mm
Cae Conveyor Height 600mm
