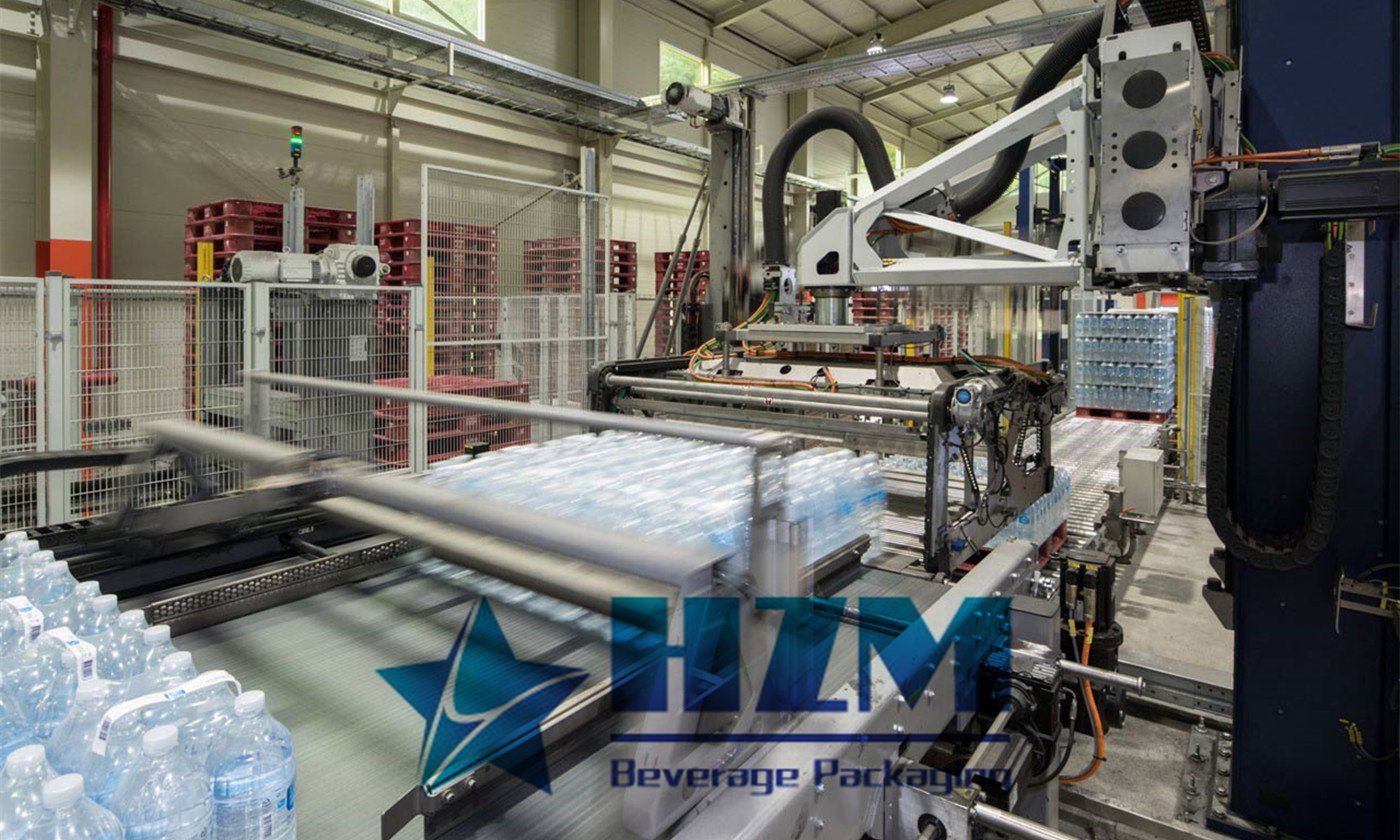

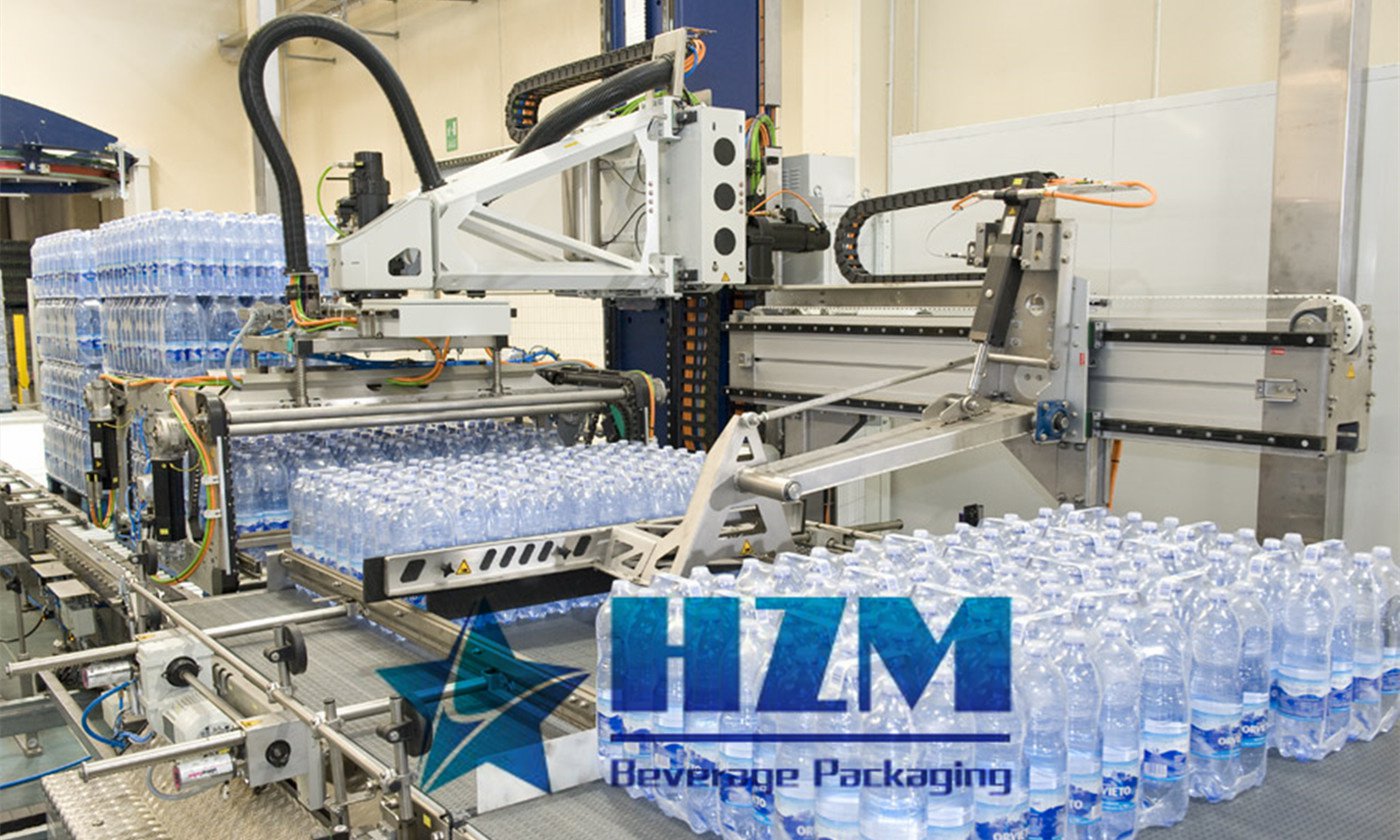

Automatic Palletzing Machine

Palletizer machine is used in various high-speed water production line palletizing and storage. It uses side-entry box mode, which covers small area, has more advanced structure, more portable and stable movement, and low energy consumption. The method of palletizing is simple and convenient to adjust. It can be realized in HMI screen. At the same time, palletizing system is suitable for both carton and film-wrapped products. Automatic pelletizer machine speed from 15PPM up to 60PPM normally.

Brief Introduction

Automatic palletizer can palletize the carton, plastic case, shrink film package or other packaging pieces on the pallet (wood, plastic), automatic stacking multi-layers, then automatically out and easy to forklift transported to the warehouse. The device controlled by PLC and touch screen control to realize intelligent operation management, high degree of automation, simple, easy to master, and it can greatly reduce labor. Focus on the concept of high speed, stable and save a space design.Pallet divider uses separate tray, high speed, save space. Automatic palletizer can be used for stocking a variety of specifications products.

Advantage

  • High accuracy
  • Long service life
  • High productive
  • Easy to operate
  • Long warranty
Product Features
Product Configurations
Video

Product Features

1.Full automatic mechanical palletizer machine is used to put cartons on pallets systematically and then push out, using lift moving to warehouse.
2.Automatic palletizing machine adopts PLC+ touch screen control to realize intelligent operation and management.
3.Automatic palletizer machine adopts touch screen operation to realize human-machine dialogue, which can show capacity, faults position and reason. Using PLC (SIEMENS) to control carton position, pallets levels and so on.
4.Automaic palletizer use Habasit company belt, which is hard enough, high precision, stable conveying.
5.Palletizing type adjust is easy, which can be realized on screen. It is stable running and high efficiency.
6.Carton supply system using brake motor control, promising right position.
7.Pallet place is big enough, which can contain 12-15 empty pallets, automatic supply pallets.

Product Configurations

NameSupplier
Main MotorSEW-Germany
PLCSIEMENS-Germany
Touch ScreenSIEMENS-Germany
InveterSCHNEIDER-France
Touch ScreenSIEMENS-Germany

Approach Electronic Switch

LEUZE-Germany
Limit SwitchOmron-Japan
Transmission BeltHABASIT-Switzerland
Low Voltage Electrical PartsSCHNEIDER-France
Pneumatic ComponentsAIRTAC-Taiwan China
