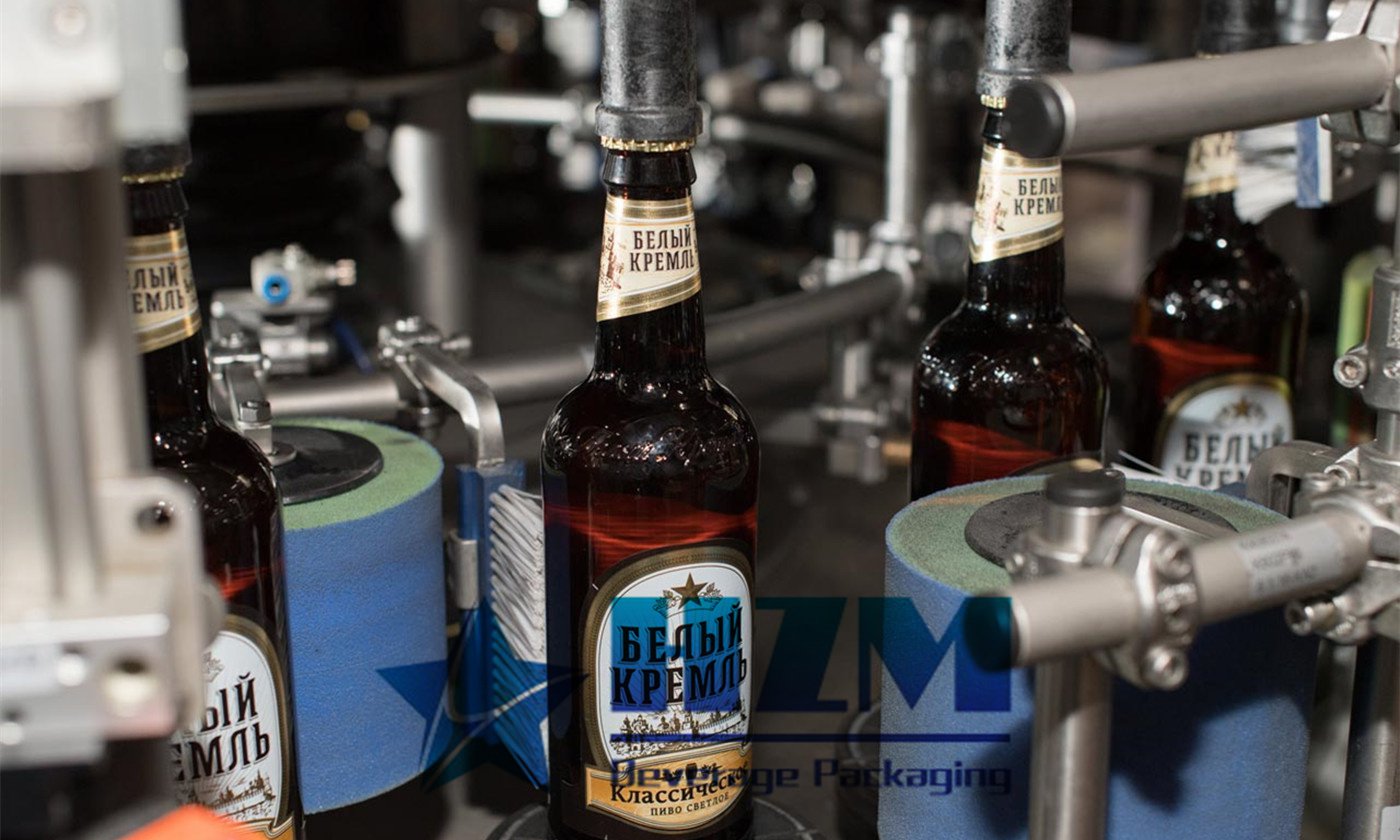

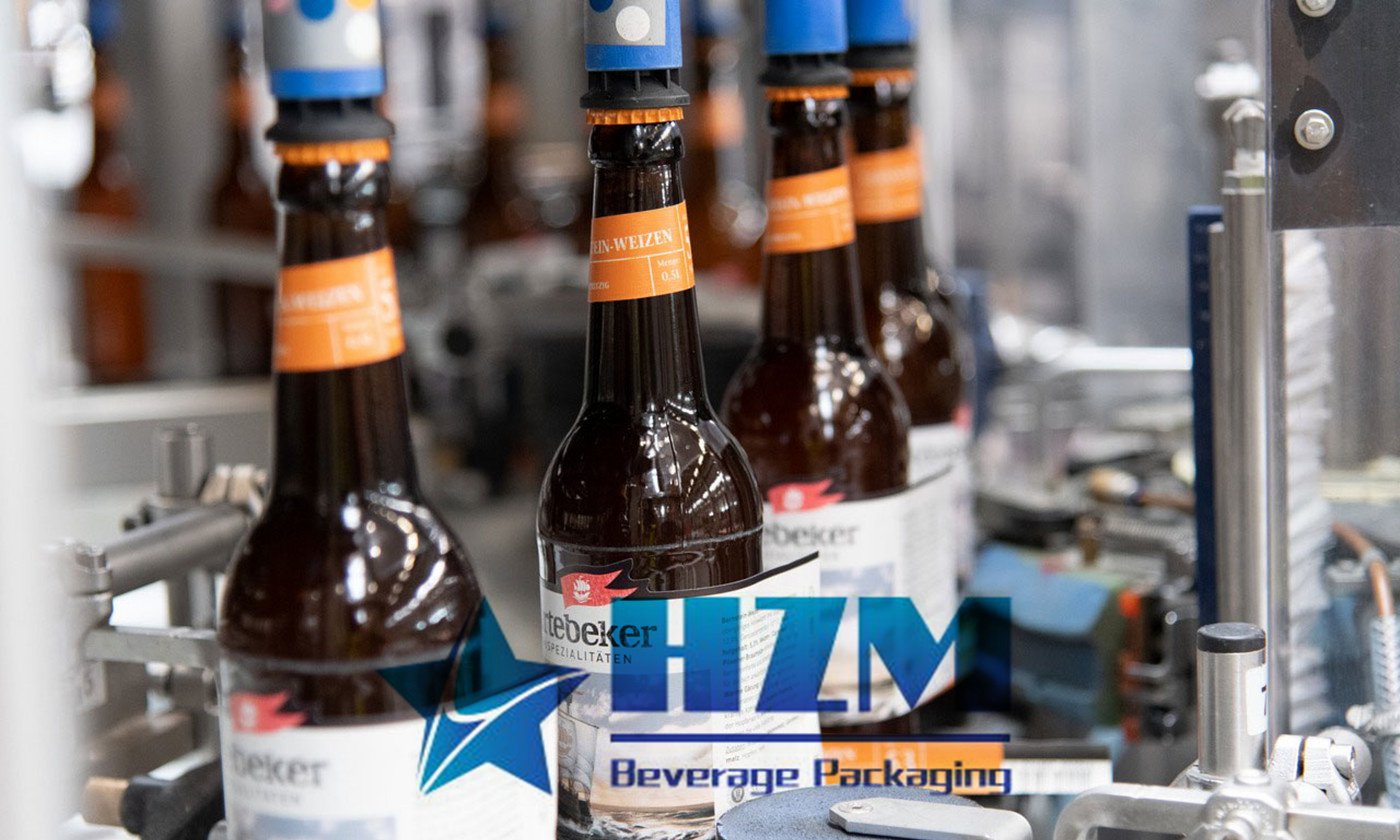

Automatic cold glue stick labeling machine is wide adaptation range used, convenient adjustment, simple operation, attractive appearance, easy maintenance, cleaning. Applicable to food, drinks, alcohol, chemical, pharmaceutical cylindrical container labeling, different specifications of the bottle-shaped labeling work can be quickly replaced, the stability of the labeling process is ideal equipment for mass production instead of manual labeling. The speed normally from 3000BPH up to 15000BPH

Share This Product
Main Features

1. Adopting PLC control system, frequency conversion and touchless sensor therefore capable of automatically and sequentially adjusting the speed in certain wide rangeland therefore of high accuracy, liability and stability of speed conversion.

2. The control panel in graphic screen allow the complete monitoring of the operating and therefore of liable operating.

3. The body label station and bottle turn plate are circularly lubricated by the pumping station before the machine’s running. It changed the style and avoided the defect of no lubrication at the beginning of the running.

4. All the bearing, bushing, and lifting screw of the rolling member have lubricating points, to which the grease is injected by the centralized pumping station, so the lubricating is convenient.

5. The cementing, label fetching and putting are rotary. The running is stable, the cementing is even, the label fetching is precise and the labeling is stable and reliable.

6. The turning mechanism of the bottle supporting structure is controlled by the rotary cam. The running is stable and reliable, the bottle turning is precise, the labeling is precise and the label brushing is even and stable. The machine can realize the labeling of round, square and other type of bottles.

7. The bottle-pressing mechanism is arm-winding. The structure is advanced and reasonable. The pressing is stable and reliable. The adjustment is easy and convenient. No bottle falling and swinging exist while high-speed running. It can be adjusted according to the height of the bottle.

Configurations
Item
Remark
Main Motor & ReducerSEW-Germany
Low Speed Large BearingHRB-China
Small BearingNSK-Japan
Main BearingSKF-Sweden
Pneumatic ComponentsFUTURE-Korea
Touch ScreenEASYVIEW-Taiwan China
InveterDANFOSS-Denmark
PLCSIEMENS-Germany
Main Technical Parameters
TypeHZ-LJ-08HZ-LJ-10HZ-LJ-12HZ-LJ-18HZ-LJ-24

Bottle Diameter

(mm)

Φ50-Φ90Φ50-Φ90Φ50-Φ90Φ50-Φ90Φ50-Φ90

Bottle Height

(mm)

Φ150-Φ300Φ150-Φ300Φ150-Φ300Φ150-Φ300Φ150-Φ300

Output

(BPH)

1200015000180002400032000

Label Quantity

(PCS)

33344

Pressing Head

(PCS)

810121824

Label Width

(mm)

50-14550-14550-14550-13550-135

Main Motor Power

(KW)

33344

Weight

(KG)

20003000450050006000

Dimension

(mm)

1800*1400*20002000*1800*20002000*2000*20002200*2000*24002400*2400*2400


Precise Quality Control


There is advanced processing equipment, strong technical force, make full use of modern CAD/CAM/CNC technology to ensure the qualified parts can be manufactured.



The qualifications of machinery not only in appearance, but also in the pursuit of the accuracy of details.


Each screw, Each process, Each equipment, we have strict control, precision testing.

×
