Automatic Carton Packing Machine

Automatic carton packing machine is used for carton packing in beer, beverage, bottled water, medical treatment, food and other bottled (canned) production line. Packing with cardboard saves about 1/5 of the cost of packaging materials compared with traditional packaging methods. Carton packing machine speed from 10PPM up to 80PPM normally. Carton packing is good for long distance transportation, which is more famous in market compare with other packs.

Brief Introduction

Low-Middle-High-Speed carton packaging machine is mainly designed for high end product and glass type product. It can protect the products well during transportation and moving. Product appearance looks beauty and easy accepted by market.

Considering about the running cost, we have highly approved some technology in power and air consumption, also make the machine more Intelligent and small dimension.

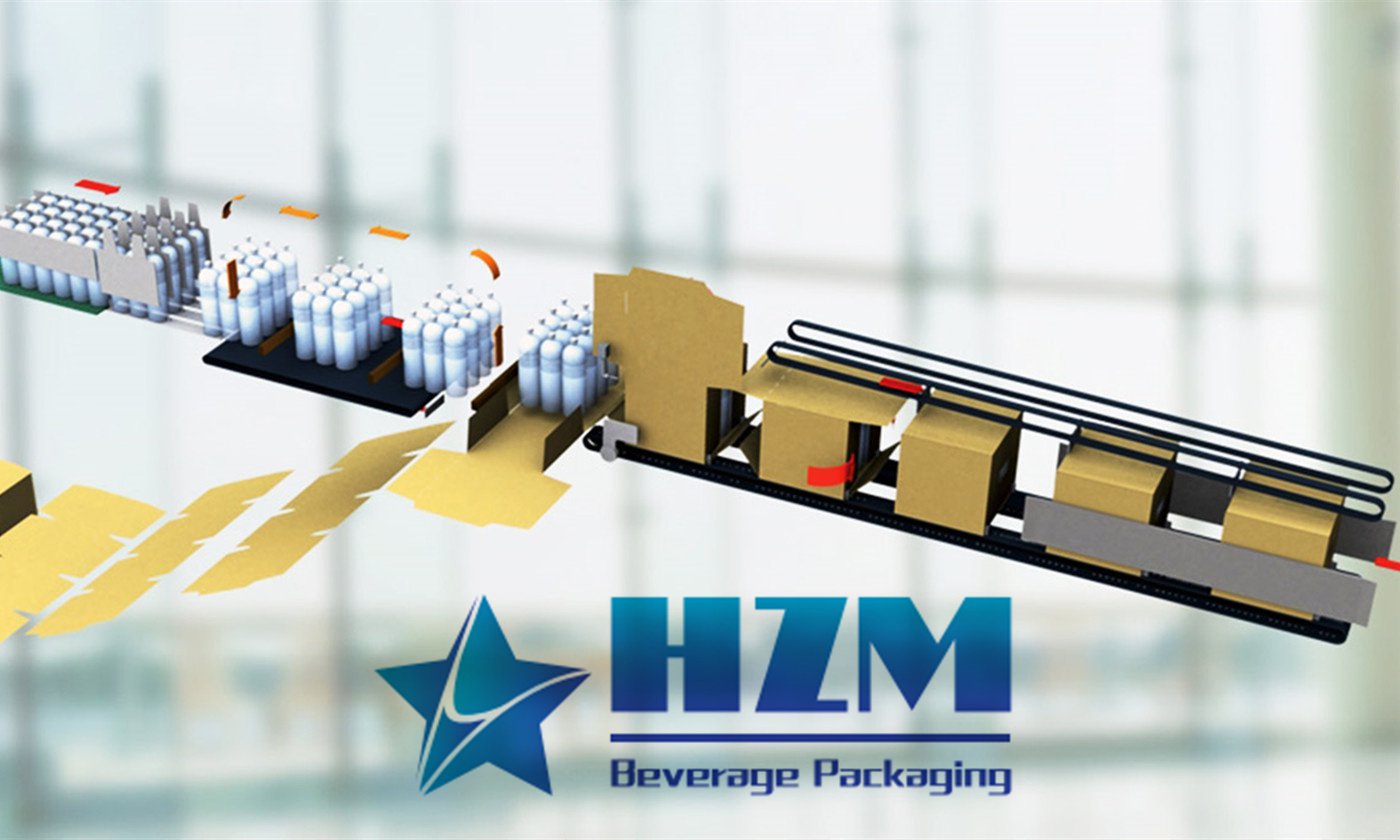

The package speed ranges is from 10PPM to 80PPM as optional, the machine structure is divided into two type according to packing speed, drop type and wrap-packing type.

Advantage

  • High accuracy
  • Long service life
  • High productive
  • Easy to operate
  • Long warranty
Product Features
Product Configurations
Product Parameters
Video

Product Features

1.Automatic carton packing machine adopts convergence system and touch screen to control every function of operation, detecting error and display automatically. Convenient for maintenance and efficient.

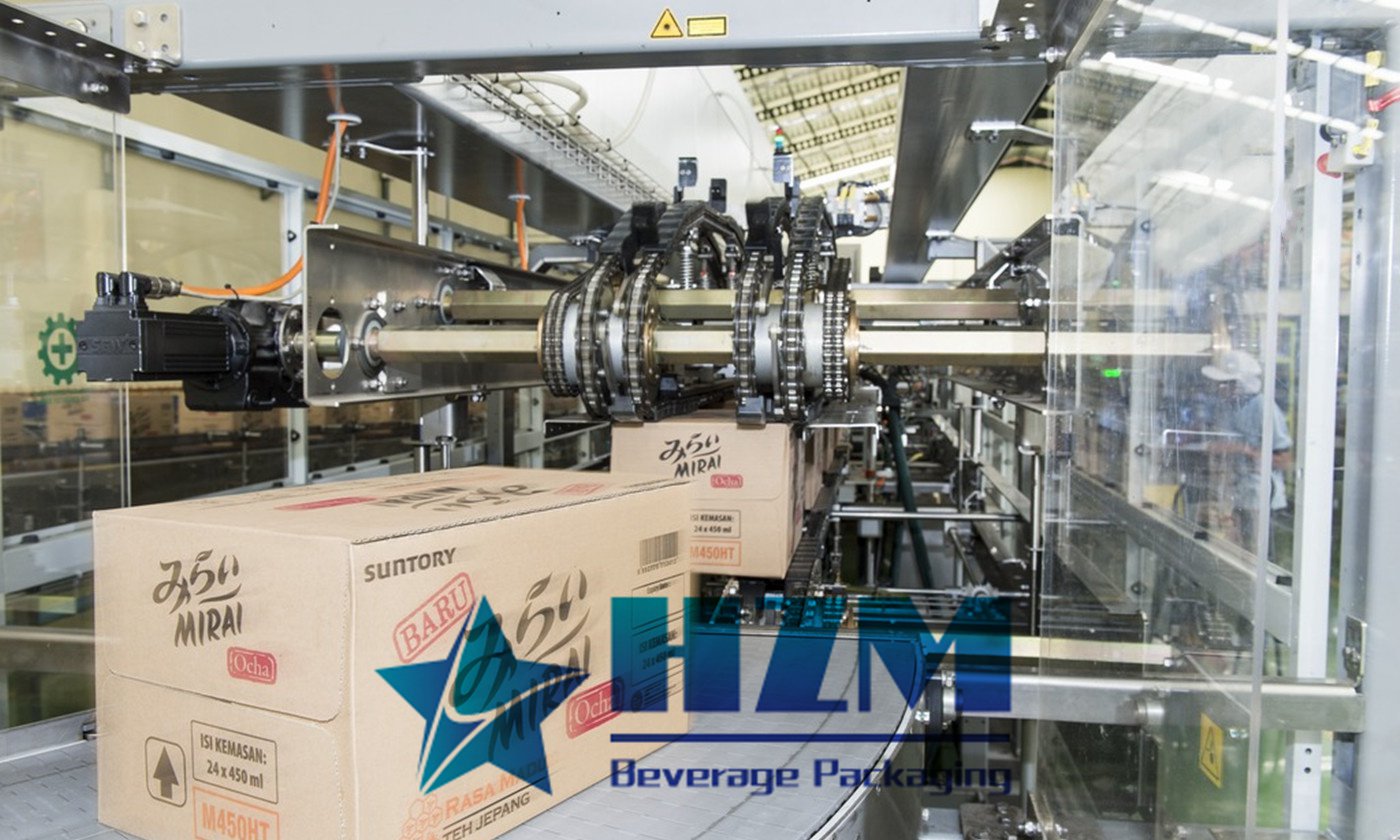

2.Carton machine usually use servo motor and self lubricate lower abrasion chain. Working stably and efficient.

3.Carton packing machine adopt famous hot melt equipment, easy to operation, durable. Packaingeffect is artistic and easy for store and transportation.

4.Liner feedind bottles and feeding cardboard system, advanced electirc collocation and technology.

5.With the combination of HMI, various control functions are improved, and parameters of various packaging specifications are directly inputted, modified and stored.

6.Carton packing machine will be more and more famous for factories.

Product Configurations

Name Supplier
Touch Screen SIEMENS-Germany
PLC SIEMENS-Germany
Inverter DANFOSS-Denmark
Contactor SIEMENS-Germany
Low Voltage Electrical Parts SCHNEIDER-France
Photoelectric switch AUTONICS-Korea
Hot Relay SCHNEIDER-France
Cylinder AIRTAC-Taiwan China
Sucker FESTO-Germany
Hot Glue System NORDSON-USA

Product Parameters

Model Carton Dimension

(mm)

Bottle Height

(mm)

Bottle Diameter

(mm)

Total Weight

(kg)

Capacity

(ppm)

Dimension

(mm)

CPM-20 550<L+W+H<1000 110-340 Φ50-180 4500 20 8870*3000*1820
CPM-35 550<L+W+H<1000 110-340 Φ50-180 5000 35 8870*3000*1820
CPM-45 550<L+W+H<1000 110-340 Φ50-180 7000 45 12380*1960*1906
CPM-60 550<L+W+H<1000 110-340 Φ50-180 11000 60 12380*3820*2628

Video
